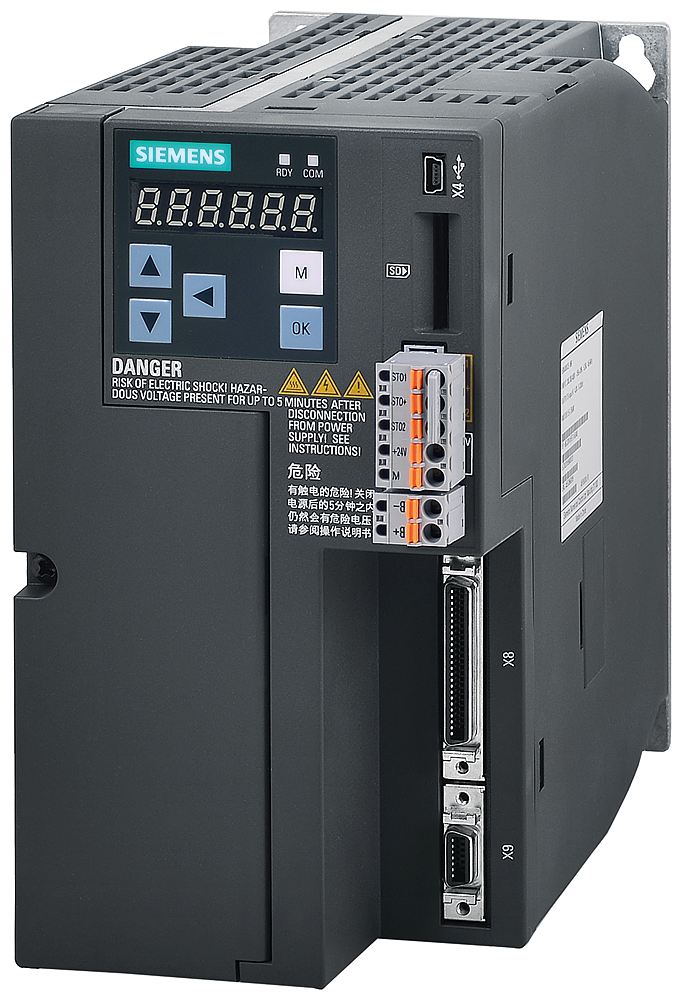

Siemens 6SL3210-5FE11-5UA0 SINAMICS V90 1.5kW 380-480V 15.9A Servo Drive

The Siemens 6SL3210-5FE11-5UA0 is a SINAMICS V90 servo drive for a 1.5 kW motor, rated 1.75 kW with a 5.30 A input current from a 3 AC 380-480 V, 45-66 Hz supply, and up to 15.90 A max output current. IP20/UL open type protection and 2.45 kg weight fit a 100 x 180 x 220 mm (W x H x D) enclosure for cabinet mounting.

Technical Specifications

Selection Notes

At 1.75 kW rated power and 15.90 A max output current, this frame covers motors in the 1.5-1.75 kW class - check the driven servo motor's continuous current against the 5.30 A rated input draw before pairing. The 380-480 V three-phase input suits machines already on a 400 V class supply, avoiding a separate transformer. Choose the next frame size up if the application needs more than 15.90 A peak output current.

Applications

Suited to 400 V class machine axes in the 1.5-1.75 kW range - indexing tables, feed axes, and material-handling stations running SINAMICS V90 servo control.
