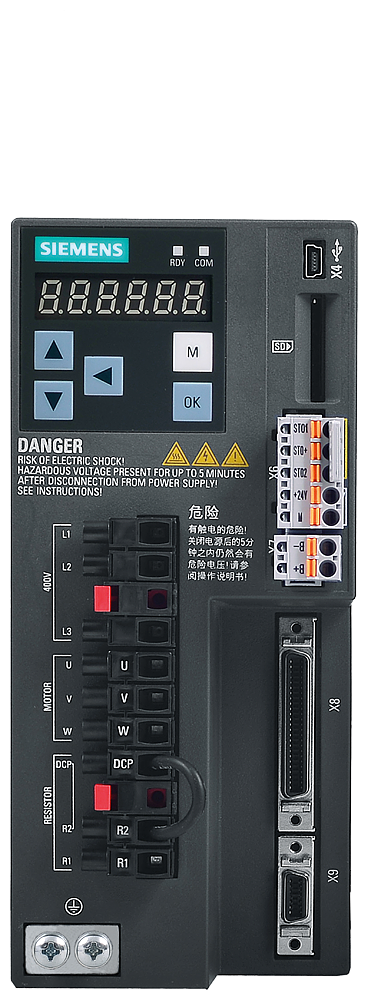

Siemens 6SL3210-5FE10-8UA0 SINAMICS V90 0.75kW 3 AC 400V Servo Drive

The Siemens 6SL3210-5FE10-8UA0 is a SINAMICS V90 servo drive sized for a 0.75 kW servo motor, with a 3 AC 380-480 V (+10%/-15%) line input at 45-66 Hz and a 2.10 A rated output current (6.30 A maximum). The IP20 / UL open-type enclosure measures 80 x 180 x 200 mm (Size A) and weighs 1.85 kg, rated for installation up to 1,000 m altitude and 0-45 degrees C ambient.

Technical Specifications

Selection Notes

The 0.75 kW rating is the entry point in this SINAMICS V90 line, so spec it for single-axis motion where torque and inertia demands are modest - small pick-and-place heads, labeling axes, or indexing tasks. The 6.30 A maximum output against a 2.10 A rated current gives roughly 3x short-term overload headroom for acceleration ramps without exceeding the continuous rating. At 80 x 180 x 200 mm this is the smallest V90 frame size, so a move to a higher motor power later may mean a larger frame rather than a drop-in swap.

Applications

Fits compact single-axis positioning: small conveyor indexing, pick-and-place, labeling, and dispensing stations that need integrated servo control in the smallest available V90 footprint. The 380-480 V 3 AC input runs directly off standard three-phase industrial supply without a step-down transformer.
