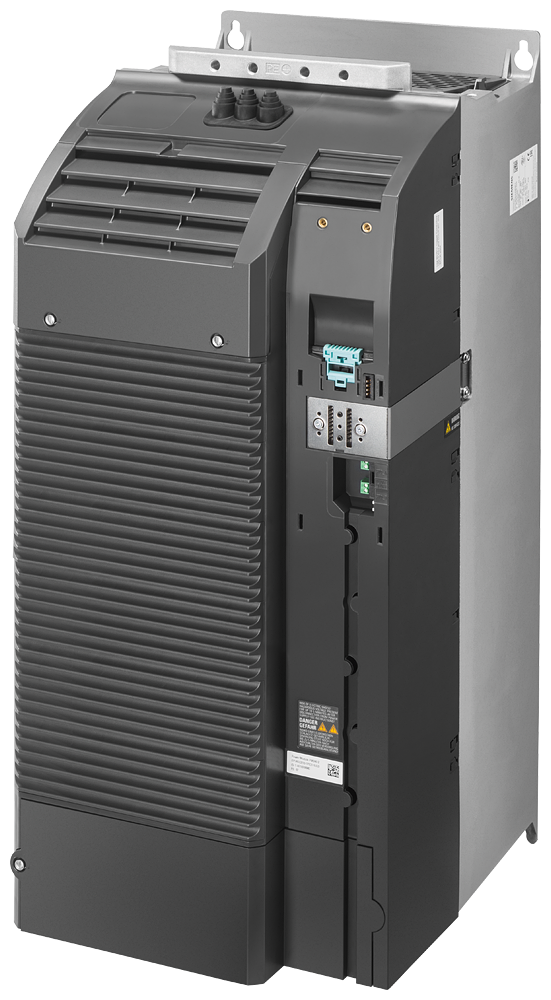

Siemens 6SL3210-1PH31-2UL0 SINAMICS G120 PM240-2 90kW/110kW 500-690V VFD Power Module

The Siemens 6SL3210-1PH31-2UL0 is a SINAMICS G120 PM240-2 power module for 3AC 500-690V supply, rated 90.00 kW at high overload and 110.00 kW at low overload - the highest power step in this FSF frame line. It has a built-in braking chopper, ships unfiltered and without a control unit or operator panel, and is approved from CU firmware V4.7 HF8. It weighs 61.0 kg with IP20 protection in a 708 x 305 x 357 mm enclosure.

Technical Specifications

Selection Notes

This is the top of the FSF range and the highest-power PM240-2 module in this line; pick it over the 75.00 kW / 90.00 kW module once continuous output current needs to reach closer to 115.00 A than 100.00 A. Max. output current of 200.00 A keeps the frame's overload margin for the 200% / 3 s window even at this rating. Power loss reaches 1.82 kW, the highest in the FSF group, so it sets the upper bound for cabinet ventilation sizing across this entire PM240-2 power module range.
