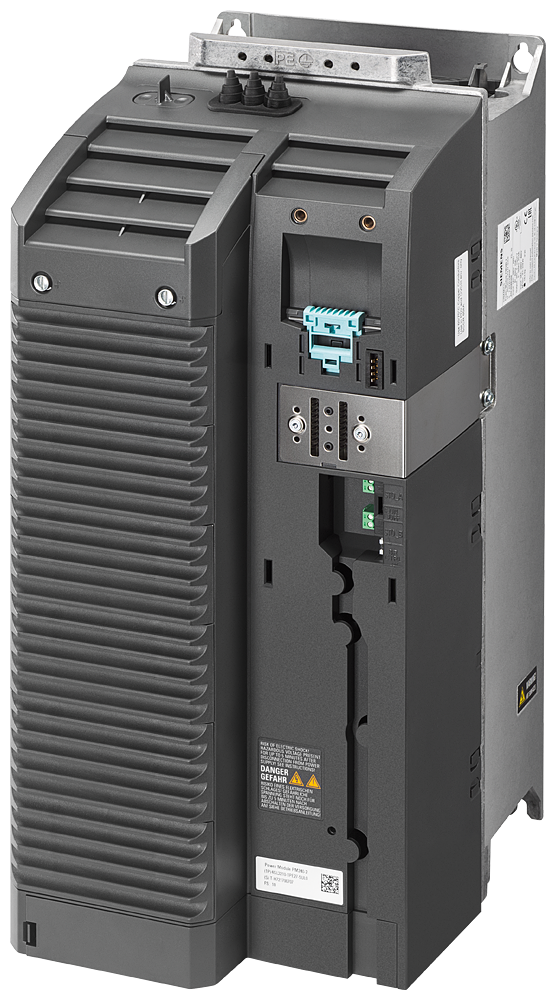

Siemens 6SL3210-1PH23-5UL0 SINAMICS PM240-2 30kW 690V FSD VFD Power Module

The Siemens 6SL3210-1PH23-5UL0 is a SINAMICS PM240-2 power module without a filter, built for a 3AC 500-690 V ±10% supply and rated 30 kW / 33.00 A at low overload or 22 kW / 28.00 A at high overload. It has a built-in braking chopper, frame size FSD, IP20 degree of protection, and weighs 17.4 kg. It is supplied without a control unit or operator panel.

Technical Specifications

Selection Notes

The 690 V rating (600 V NEC) is the key differentiator on this PM240-2: it covers 500-690 V lines, above the more common 380-480 V PM240-2 variants, so confirm supply voltage before ordering. Sizing splits into low overload (LO, 30 kW / 33.00 A, for variable-torque loads like pumps and fans with light overload duty) and high overload (HO, 22 kW / 28.00 A, for constant-torque loads needing 150% for 57 s / 200% for 3 s per the catalog's HO overload profile). The built-in braking chopper handles dynamic braking energy without an external braking module, and the FSD frame ships without a control unit, so a separate CU240 control unit is required to operate it.

Applications

Used in SINAMICS G120 modular VFD assemblies on 690 V lines — common in mining, cement, and heavy material-handling plants — for pump, fan, and conveyor loads sized between 22 kW and 30 kW depending on the duty's overload profile.
