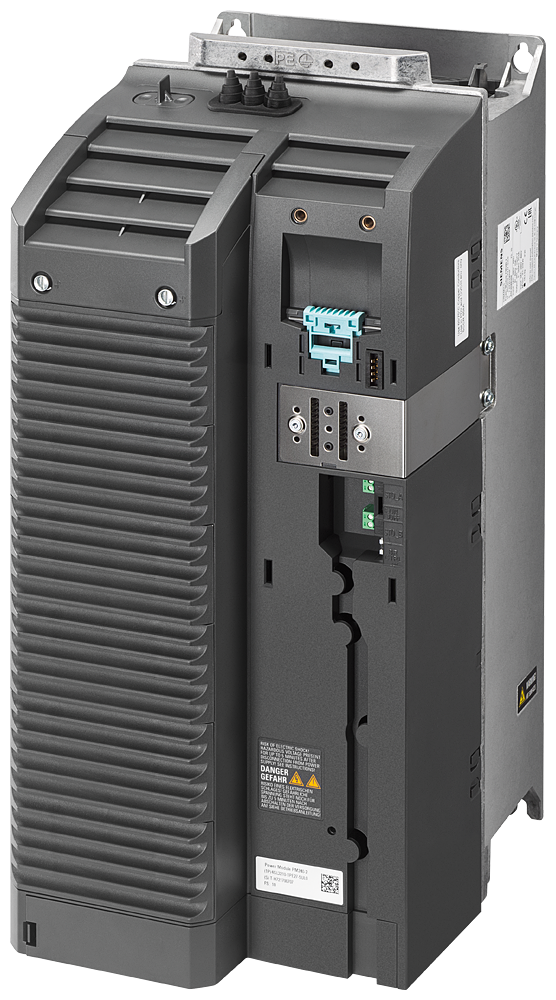

Siemens 6SL3210-1PH21-4UL0 SINAMICS G120 PM240-2 7.5kW/11kW 500-690V VFD Power Module

The Siemens 6SL3210-1PH21-4UL0 is a SINAMICS G120 PM240-2 power module for 3AC 500-690V supply, rated 7.50 kW at high overload and 11.00 kW at low overload in the FSD frame. A braking chopper is built in, no input filter is fitted, and the module ships without a control unit or operator panel; it is approved from CU firmware V4.7 HF8. At 17.4 kg and IP20-rated, it fits a 472 x 200 x 237 mm cabinet footprint on 690V industrial distribution.

Technical Specifications

Selection Notes

At 500-690V, this module connects directly to 690V industrial distribution, unlike the lower-voltage PM240-2 frame sizes built for 200-240V supply. Within the FSD frame, 7.50 kW / 11.00 kW is the lowest power point offered in this batch, so it fits pumps and fans whose overload demand stays close to the low-overload rating rather than machines needing sustained torque near the frame's upper current limit. The built-in braking chopper covers occasional regenerative events without an added braking module, screw-type terminals simplify field wiring versus spring-clamp alternatives.
