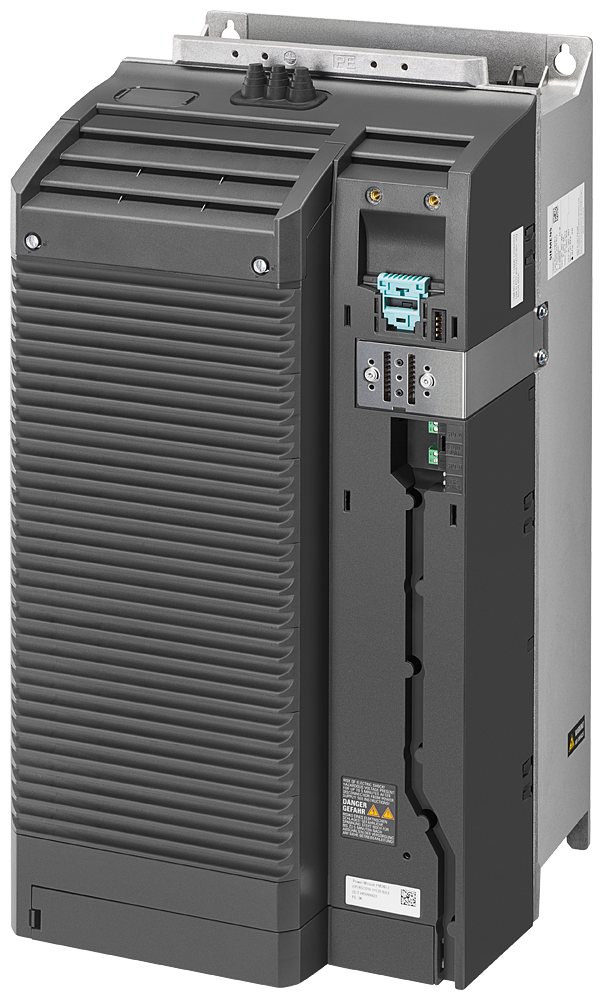

Siemens 6SL3210-1PE28-8UL0 SINAMICS G120 PM240-2 45kW IP20 FSE VFD Power Module

The Siemens 6SL3210-1PE28-8UL0 is a SINAMICS G120 PM240-2 power module rated 45 kW low overload / 37 kW high overload at 3AC 380-480V, with a built-in braking chopper and IP20 (frame size FSE) enclosure. It operates without a filter and requires a separate Control Unit, firmware V4.7 HF8 or compatible.

Technical Specifications

Selection Notes

PM240-2 without filter means an external EMC or output filter must be added if long motor cable runs or strict EMC class compliance are required — factor that into the bill of materials. The built-in braking chopper allows a braking resistor to be connected directly without a separate braking unit, useful for cranes, centrifuges, or other applications with regenerative loads. Frame size FSE (551 x 275 x 237 mm, 26.4 kg) sits at the top of the PM240-2 range at this power point; check panel clearance and cooling airflow (0.083 m3/s) before specifying the enclosure.

Applications

Pairs with a SINAMICS G120 Control Unit to form a complete drive for fans, pumps, and conveyors up to 45 kW where a compact, filterless power stage with an integrated braking chopper is sufficient.
