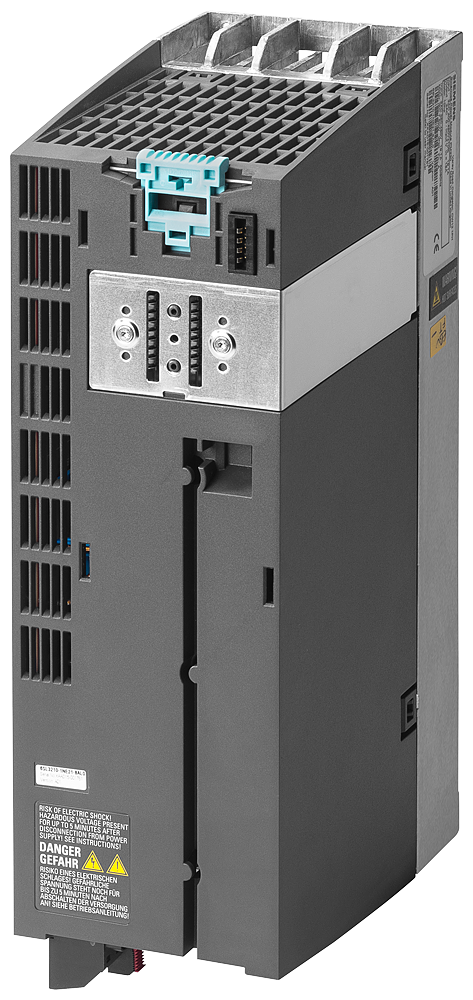

Siemens 6SL3210-1PE16-1UL1 SINAMICS PM240-2 2.2kW 400V IP20 Power Module

The Siemens 6SL3210-1PE16-1UL1 is a SINAMICS PM240-2 power module (Frame Size A, unfiltered) with an integrated braking chopper, rated 2.2 kW low-overload / 1.5 kW high-overload from a 380-480 V 3 AC supply. Max output current is 8.9 A at up to 4 kHz pulse frequency. It weighs 1.38 kg and requires a Control Unit running firmware V4.6 or later.

Technical Specifications

Selection Notes

Rating depends on overload class: at low overload (LO, light/variable-torque loads like pumps and fans) this module delivers 2.2 kW continuous with 150% for 57 s; at high overload (HO, constant-torque loads) it drops to 1.5 kW with 200% for 3 s — size it against the load's actual overload profile, not just the continuous kW figure. The integrated braking chopper handles dynamic braking energy without an external braking module, useful for applications with frequent deceleration such as hoists or centrifuges, as long as a braking resistor is fitted. It requires a CU240 Control Unit running firmware V4.6 or later — check the paired control unit's firmware before combining with an existing G120 build.

Applications

Used as the power stage in modular SINAMICS G120 drives for pumps, fans, conveyors and mixers in the 1.5-2.2 kW range, paired separately with a CU240 control unit.
