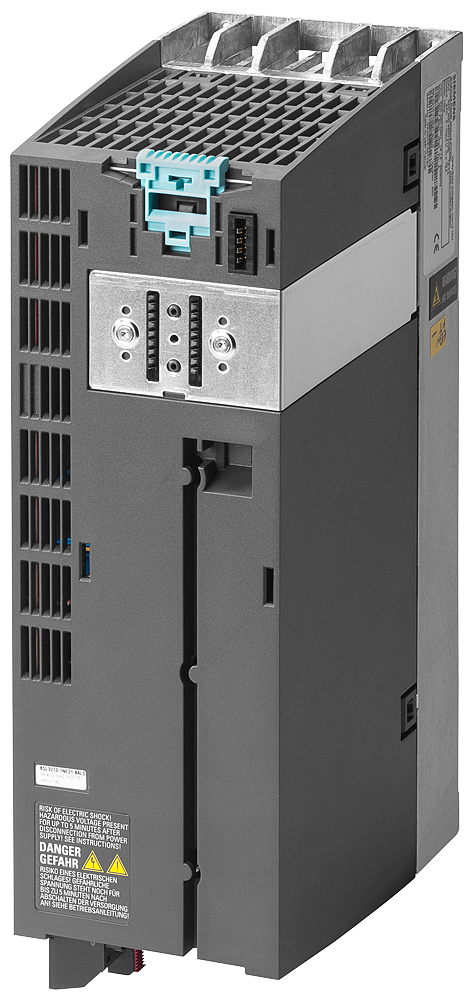

Siemens 6SL3210-1PE13-2UL1 SINAMICS PM240-2 FSA 1.1kW 380-480V IP20 VFD Power Module

The Siemens 6SL3210-1PE13-2UL1 is a SINAMICS PM240-2 power module, frame size FSA, unfiltered, with an integrated braking chopper for 380-480 V 3 AC supply. It delivers 1.10 kW at low overload, 150% for 57 s, or 0.75 kW at high overload, 200% for 3 s, with a maximum output current of 4.70 A. IP20 protection, without Control Unit or operator panel.

Technical Specifications

Selection Notes

This PM240-2 module is rated 1.10 kW at low overload, 150% for 57 s, 100% continuous up to 40 degrees C, or 0.75 kW at high overload, 200% for 3 s, 100% continuous up to 50 degrees C. Pick the low-overload rating for centrifugal loads like pumps and fans with steady torque, and the high-overload rating for applications needing short-duration torque spikes, such as extruders or positioning axes, at the cost of a lower continuous ambient rating. It is unfiltered, so an external EMC filter is required where conducted-emission limits apply, and the integrated braking chopper handles regenerative energy from decelerating loads without a separate braking module. Frame size FSA fits motors around this power range; move to a larger frame size for higher power.

Applications

Suited to small pump, fan, and conveyor drives on a SINAMICS G120 system built from a separate Power Module and Control Unit, where the braking chopper handles occasional deceleration energy without an external braking module.
