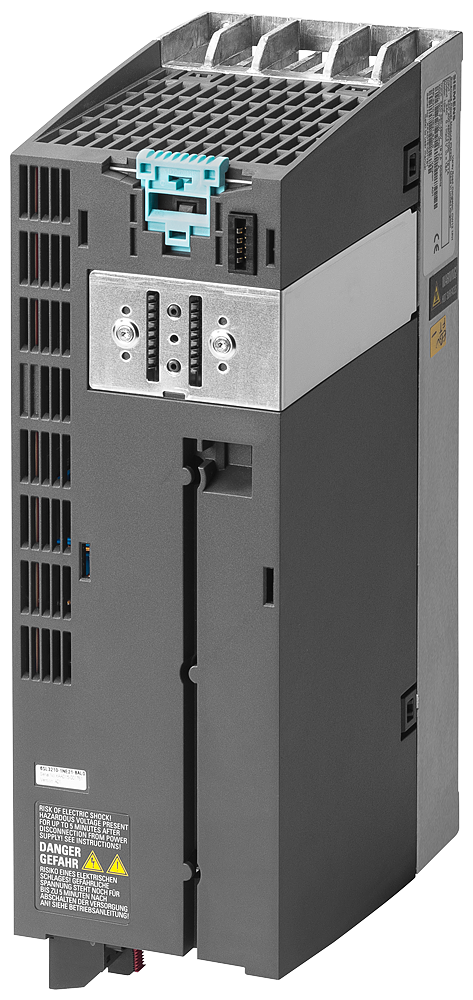

Siemens 6SL3210-1PB13-0UL0 SINAMICS PM240-2 IP20 FSA 230V 0.55kW VFD Power Module

The Siemens 6SL3210-1PB13-0UL0 is a SINAMICS G120 PM240-2 Power Module, unfiltered with an integrated braking chopper, rated for 200–240 V 1/3 AC input and 0.55 kW (Low Overload) / 0.37 kW (High Overload) output at 230 V IEC. Frame size FSA, degree of protection IP20, the module measures 196 × 73 × 165 mm (H×W×D) and weighs 1.4 kg.

Technical Specifications

Selection Notes

The 6SL3210-1PB13-0UL0 accepts both single-phase and three-phase 200–240 V supply, making it deployable in 230 V single-phase infrastructure without a separate line reactor — useful in retrofit situations where a three-phase feed is unavailable. At the LO rating of 0.55 kW, the maximum ambient is 40 °C; switching to the HO profile (0.37 kW, 200 % overload for 3 s) raises the ceiling to 50 °C, which matters in warm control-cabinet environments. The integrated braking chopper eliminates the need for an external braking module at this power level, keeping FSA footprint at 73 mm wide. For applications needing 0.75 kW LO or a filtered variant, step up to the next frame or the PM240-2 F (filtered) equivalent; for sub-0.37 kW loads, a smaller frame reduces panel space further. This module ships without a Control Unit — pair it with a CU240B-2, CU240E-2, or CU250S-2 running firmware ≥ V4.6.
