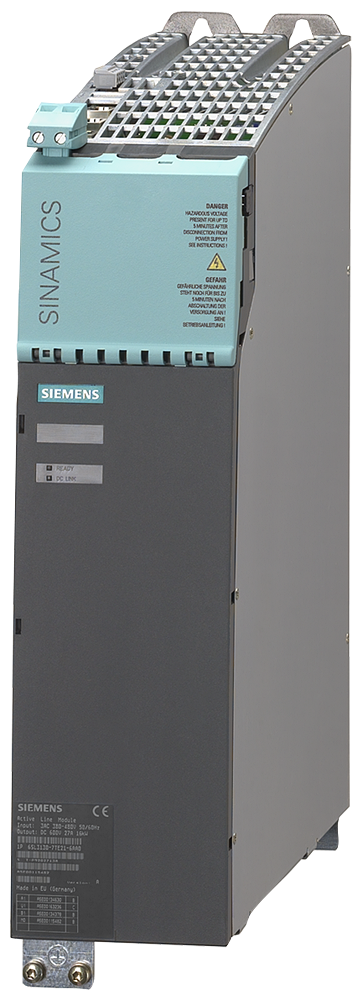

Siemens 6SL3130-7TE21-6AA4 SINAMICS S120 Active Line Module 16kW 27A Booksize Drive Module

The Siemens 6SL3130-7TE21-6AA4 is a SINAMICS S120 Active Line Module rated 16 kW (35 kW maximum, 59A max) at 3AC 380-480V input, producing a regulated 600V DC link at 27A continuous. It ships in Booksize frame format with internal air cooling and an included DRIVE-CLiQ cable. Its 65 kA short-circuit strength rating and 7.0 kg weight fit the mid-power range of the Booksize S120 module family.

Technical Specifications

Selection Notes

At 16 kW rated / 35 kW maximum, this Active Line Module sits well above the 5 kW Smart Line Module in the same S120 Booksize family; choose it where the connected Motor Modules draw more DC-link current than a Smart Line Module's 8.3A can supply, or where sinusoidal line-side current and closed-loop line voltage control are required rather than the diode-based Smart Line Module's simpler regeneration. The 65 kA short-circuit strength rating, versus 100 kA on the smaller Smart Line Module, reflects the different protection coordination needed at this current level.

Applications

Supplies the DC link for higher-power SINAMICS S120 Motor Module line-ups in Booksize format, in multi-axis machine tools, cranes, and test-stand drives where line-side harmonics and dynamic regenerative braking performance matter more than on lower-power axes.
