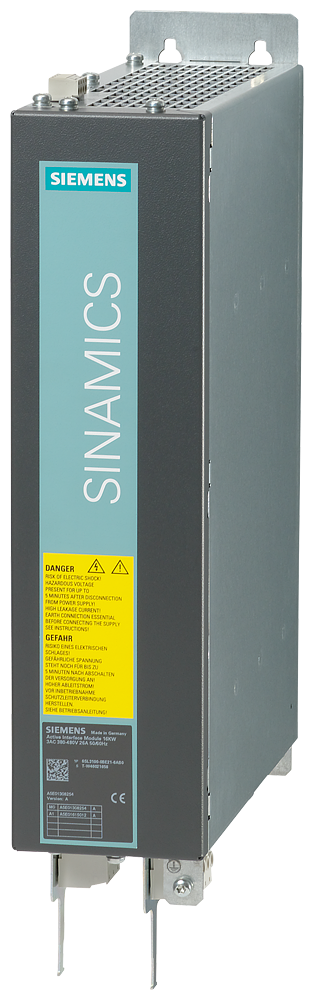

Siemens 6SL3100-0BE21-6AB0 SINAMICS S120 Active Interface Module 16kW 3AC 380-480V Drive Module

The Siemens 6SL3100-0BE21-6AB0 is a SINAMICS S120 Active Interface Module sized for the 16 kW Active Line Module, rated 3 AC 380-480 V input with a 26 A input current in Booksize frame format. It requires a 16 mm² (AWG 6) conductor cross-section, dissipates 0.27 kW in losses, and cools via internal forced air at 0.030 m³/s.

Technical Specifications

Selection Notes

This Active Interface Module is sized to match the 16 kW Active Line Module in the same Booksize frame — pairing it with a differently rated Active Line Module would mismatch the 26 A input current and 16 mm² conductor rating. The line-side filtering it provides is required ahead of an Active Line Module to meet harmonic and EMC limits that a passive supply does not need. At 0.27 kW losses and 0.030 m³/s cooling air throughput, plan cabinet ventilation around this module in addition to the Active Line Module's own losses.

Applications

Line-side interface ahead of a 16 kW SINAMICS S120 Active Line Module in Booksize multi-axis drive systems — machine tools, printing, or packaging lines built from modular S120 drive racks with active, regenerative infeed.
