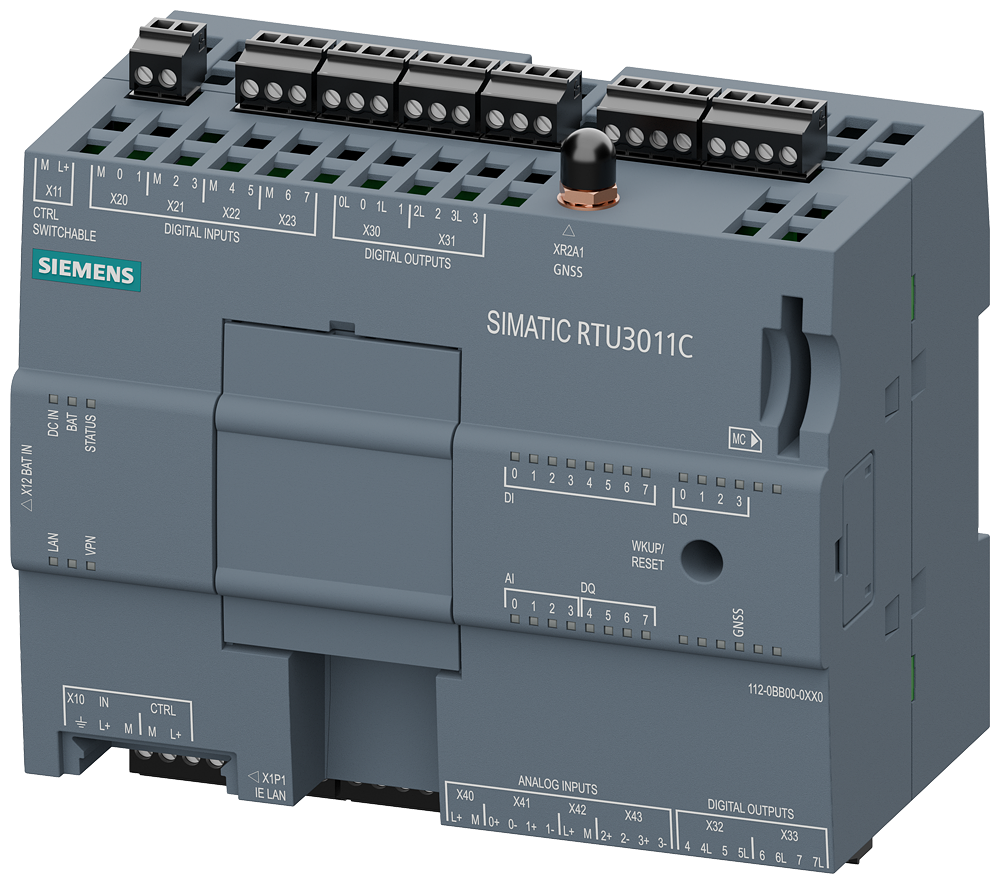

Siemens 6NH3112-0BB00-0XX0 SIMATIC RTU3000C RTU3011C 8DI/8DO/4AI GNSS Telecontrol Module

% $-1,224.88
Siemens 6NH3112-0BB00-0XX0 SIMATIC RTU3011C telecontrol RTU - 8DI 8DO 4AI GNSS
Siemens 6NH3112-0BB00-0XX0 SIMATIC RTU3011C telecontrol RTU - 8DI 8DO 4AI GNSS

Siemens 6NH3112-0BB00-0XX0 SIMATIC RTU3000C RTU3011C 8DI/8DO/4AI GNSS Telecontrol Module

Brand: Siemens
Reference No: 6NH3112-0BB00-0XX0
Catalog No: 6NH3112-0BB00-0XX0
Series: SIMATIC
Tariff Code (HS): 85176200
Communication: Industrial Ethernet (RJ45), DNP3, IEC 60870-5-104, SINAUT ST7, MQTT
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$1,224.88

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6NH3112-0BB00-0XX0 SIMATIC RTU3011C is a compact, battery- or solar-powered remote terminal unit with 8 DI, 8 DO and 4 AI onboard, an Industrial Ethernet port and GNSS positioning. It speaks DNP3, IEC 60870-5-104, SINAUT ST7 or MQTT for telecontrol and cloud reporting, and configures through its built-in webserver rather than dedicated engineering software.

Technical Specifications

SKU 6NH3112-0BB00-0XX0
Brand Siemens
Series SIMATIC RTU3000C
EAN 4047623165651
Product Type Designation RTU3011C
Operating Modes Standby (Sleep) mode, Actualization mode, Communication mode
Housing & Mounting Compact module, 130 x 100 x 75 mm (W x H x D), 35 mm top-hat DIN rail or wall mounting
Net Weight 0.34 kg
Protection Class IP IP20; IP68 with optional protective housing accessory
Ethernet Interface 1x Industrial Ethernet, RJ45 port, 10 ... 100 Mbit/s
Power Supply Connection 5-pole pluggable terminal block, 1 connection
Memory Card Slot 1 slot; SD 1.0, SD 1.1, SDHC or Siemens SMC, max. 32 GiB
GNSS Antenna Connection Active GNSS antenna
Digital Inputs 8, pluggable screw terminal block, open-drain transistor or switch, 2-wire; 2 of the 8 usable as counter inputs (min. pulse 0.1 ms, max. 5000 Hz)
Digital Outputs 8, pluggable screw terminal block; 4x bistable relay (2-wire) + 4x solid-state relay; output current 300 mA (solid-state 60 mA)
Analog Inputs 4, pluggable screw terminal block, 2/3/4-wire, 12-bit A/D; parameterizable for 0/4-20 mA, 0-5/10 V or Pt1000 -80 ... +140 °C
Wireless / Mobile Connectivity Via external IP-based router (no onboard modem)
Supply Voltage DC, 10.8 ... 28.8 V external (12 ... 24 V range); output 12 V or 24 V DC for external devices
GNSS Antenna Supply 3.8 V nominal (3.575 V at 5 mA, 3.35 V at 10 mA, 3.125 V at 15 mA), max. 15 mA output
Current Consumption, External 24V DC Standby 14 mA, update 35 mA, communication 55 mA (typical, without connected consumers)
Current Consumption, Battery 7.2V Standby 0.28 mA, update 71 mA, communication 125 mA (typical)
Power Loss, External 24V DC Standby 0.34 W, update 0.85 W, communication 1.25 W (typical)
Power Loss, Battery 7.2V Standby 0.002 W, update 0.51 W, communication 0.9 W (typical)
Ambient Temperature, Operation -40 ... +60 °C vertical mounting; -40 ... +70 °C horizontal busbar arrangement
Ambient Temperature, Storage / Transport -40 ... +70 °C
Relative Humidity, Max 95% at 30 °C, non-condensing
Cloud Connectivity MQTT; trigger management, time stamping, buffered message frame memory
Program Memory 45 program block types, up to 48 configurable program blocks, 48 digital and 24 analog bit memories max.
IT Functions FTP client (1 connection, 12-entry buffer); email client (1 connection, 20 addresses / 10 user groups max., 20 free texts max. of 160 characters, 12-entry buffer)
Telecontrol Substation-capable; connects to IEC 60870-5-104, DNP3, SINAUT ST7cc/sc or TeleControl Server Basic control centers; permanent or demand-oriented connection; max. 256 KiB user data per station
Loadable Protocols DNP3, IEC 60870-5, SINAUT ST7
Connection-Loss Buffering Approx. 5,000 telegrams (IEC 60870), 10,900 (DNP3), 7,700 (SINAUT ST7), 10,900 (TeleControl Server Basic)
Teleservice Remote firmware update, remote configuration
Configuration No configuration software required, via integrated webserver; SIMATIC PDM gateway via Modbus TCP or HART-IP
Diagnostics Web-based diagnostics
VPN Security OpenVPN client, AES-128/AES-256 encryption, certificate-based authentication, SHA-256 hashing, 2 possible connections (1 simultaneous productive connection)
Other Security Functions Password protection for web applications, teleservice and VPN; encrypted data transmission; switch-off of unused services; SysLog
Time Functions NTP support; hardware real-time clock with battery backup, accuracy max. 1.8 s/day; sync from NTP, GPS, control center, PC or manual setting
Position Detection GPS position detection with position data passed to the control center
Certifications, TED-Confirmed CE, UKCA, cULus, RCM
Country of Origin DE

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • RCM
  • RoHS
  • ATEX
  • IECEx
  • ULHazLoc
  • CCC
  • FM

Selection Notes

The 10.8 to 28.8 V DC external input plus a 7.2 V battery mode means this RTU keeps logging and buffering telegrams, up to roughly 10,900 for DNP3 or TeleControl Server Basic, through mains outages without a separate UPS. Two of the eight digital inputs double as 5 kHz counter inputs, so flow or pulse metering does not need a separate counter module. Choose the loadable protocol, DNP3, IEC 60870-5-104, SINAUT ST7 or MQTT, to match the control center already in use, since the unit runs one protocol stack at a time rather than several concurrently; check GNSS national approvals for the installation country before deployment.

Technical Details

Short Description
Siemens SIMATIC RTU3011C compact RTU, 8DI/8DO/4AI, GNSS, DNP3/IEC 60870-5-104/SINAUT ST7/MQTT, battery or solar powered.
Mounting Type
35 mm DIN rail or wall mounting
Protection Type
IP20 (IP68 with optional housing)
Catalog No
6NH3112-0BB00-0XX0
Standards
/ CE marking, / UKCA marking, / cULus approval, / Regulatory Compliance Mark (RCM), / RoHS conformity, / ATEX, / IECEx, / ULhazloc approval, / CCC / for hazardous zone according to GB standard, / FM registration
Delivery Date (Days)
10-15 days
Model Number
6NH3112-0BB00-0XX0
Tariff Code
85176200
