Siemens 6GT2815-2BH50 SIMATIC RF600 UHF Antenna Connecting Cable 5m RP-TNC RFID Cable

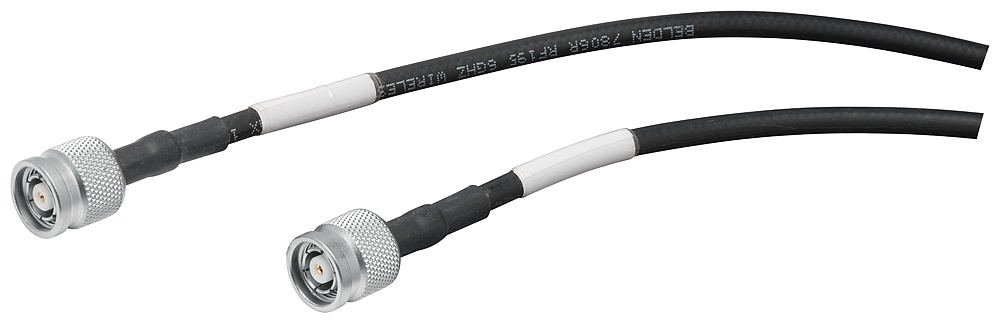

The Siemens 6GT2815-2BH50 is a SIMATIC RF600 pre-assembled UHF antenna connecting cable, 5 m long, with RP-TNC (female, straight) connectors on both ends and a 50 ohm rated impedance. It links an RF600 reader to a UHF antenna and is rated IP65 with a trailing-cable construction for moving installations.

Technical Specifications

Selection Notes

The 100000 bending cycle and 3,000,000 torsion cycle ratings, combined with the trailing-cable construction, mean this variant is built for antennas that move with a gantry or turntable rather than a fixed mounting point. The 0.288 dB/m attenuation at 900 MHz sets the usable run length before signal loss starts to cut read range; longer or shorter runs in the same RF600 antenna-cable family are sized by the wire length code in the order number, so pick length based on the physical distance between reader and antenna, not on RF performance.

Applications

Connecting a SIMATIC RF600 UHF reader to a remotely mounted antenna on conveyor gates, dock doors, and other read points where the antenna is separated from the reader and, in trailing installations, moves during operation.
