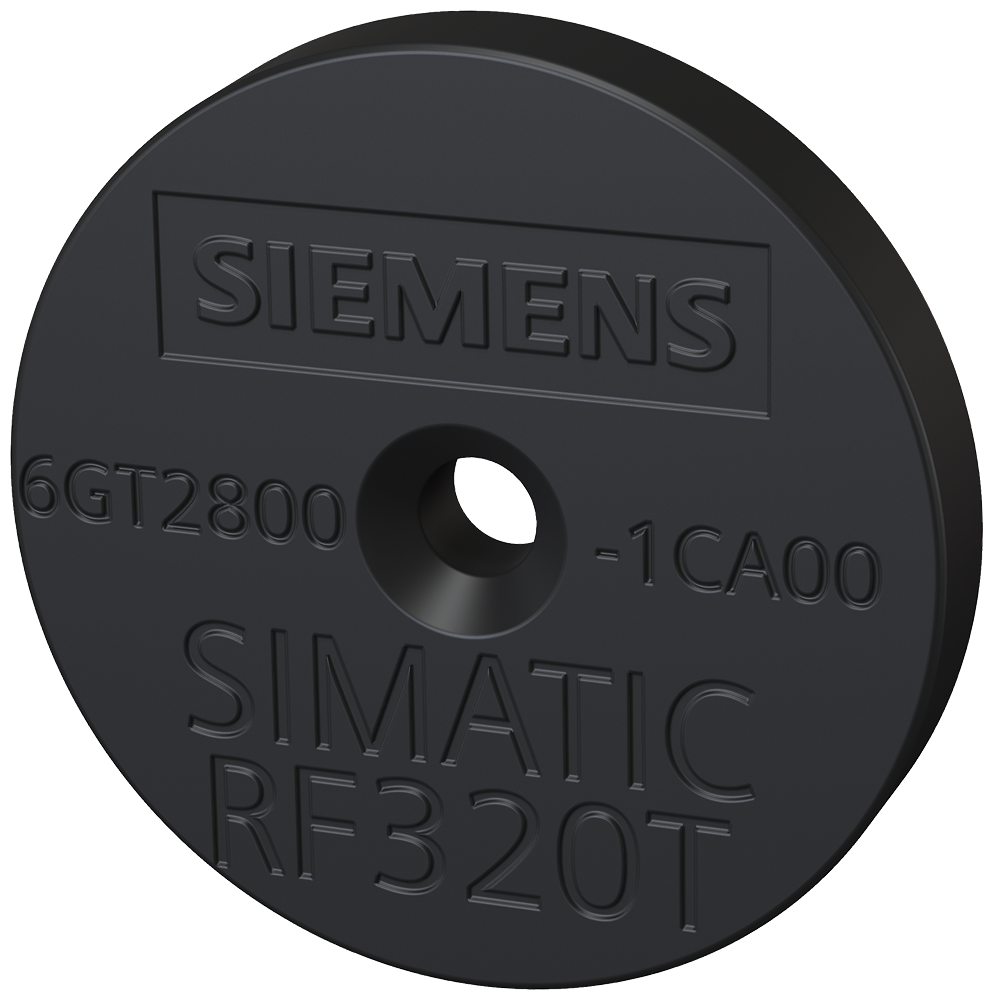

Siemens 6GT2800-1CA00 SIMATIC RF300 RF320T Transponder 13.56 MHz 20 Byte RFID Transponder

The Siemens 6GT2800-1CA00 is a SIMATIC RF300 RF320T button transponder operating at 13.56 MHz with 20 byte EEPROM user memory. Rated IP67/IPx9K and molded in epoxy resin at a 27 x 4 mm button size, it withstands -25 to +125 degrees C during read/write access and up to 1000 m/s squared shock acceleration for identification tasks in harsh production environments.

Technical Specifications

Certifications & Standards

• cULus
• EPD

Selection Notes

The 20 byte EEPROM user memory is the smallest capacity in the RF300 range, so it suits fixed identification codes (workpiece carrier ID, tool ID) rather than applications that need to store process data on the tag. The -25 to +125 C read/write rating and IP67/IPx9K housing make this variant a fit for washdown or paint-oven stations; projects that need higher temperature tolerance or more onboard memory should look at other RF300 button transponders in the same family. Minimum order quantity is 20 units, so plan purchases around fleet-sized carrier tagging rather than single-tag trials.

Applications

Workpiece and tool identification on conveyor and pallet systems, automotive body-in-white tracking, and other RF300-based tracking where a small, glued or screwed button tag must survive repeated high-temperature cycles.
