Siemens 6GT2600-4AC00 SIMATIC RFID MDS D424 2000 Byte ISO 15693 RFID Transponder

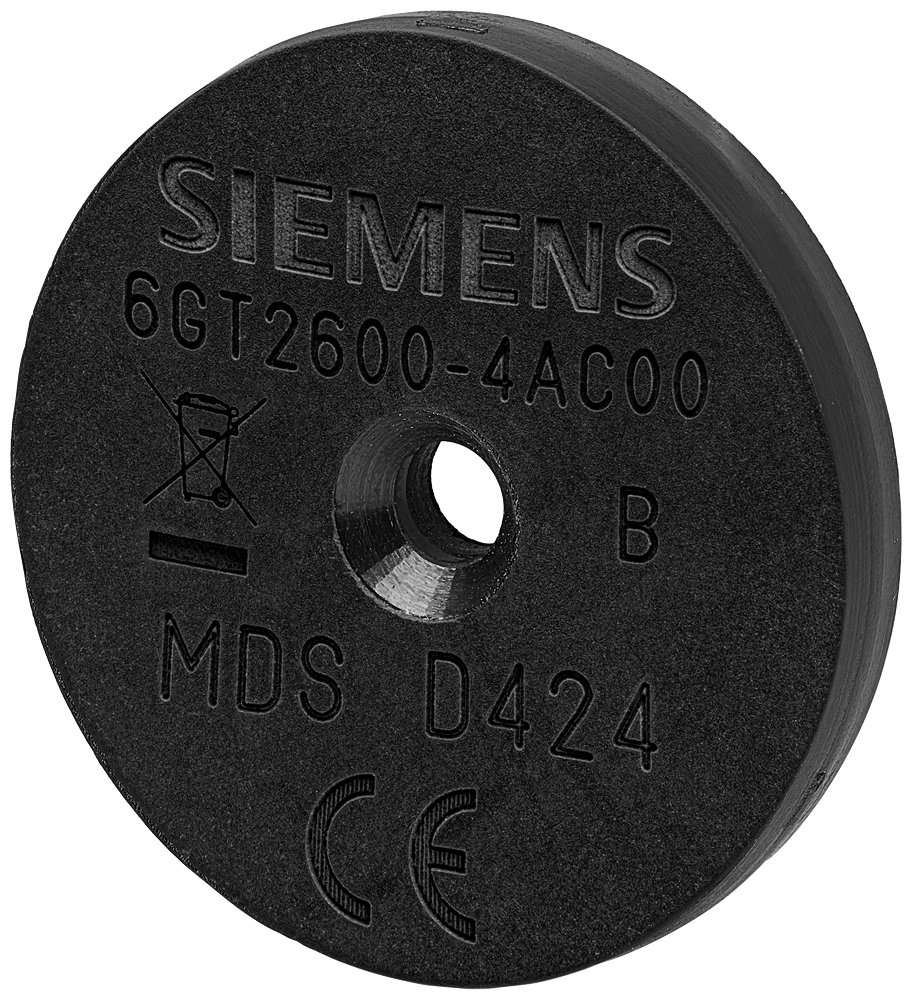

The Siemens MDS D424 (6GT2600-4AC00) is an ISO 15693 RFID transponder for RF200, RF300, and MOBY D systems, with 2000 bytes of FRAM user memory, a 13.56 MHz operating frequency, and a 26.5 kbit/s maximum data rate. Its 27x4 mm epoxy-resin button housing is rated IP67/IPx9K and withstands -25 to +85C during read/write access.

Technical Specifications

Selection Notes

2000 bytes of FRAM user memory and multitag capability distinguish the MDS D424 from smaller-memory ISO 15693 tags in the same MOBY D/RF300 range - choose it when the application needs to store more than a bare ID, such as a routing history or product recipe, directly on the tag. The IP67/IPx9K-rated epoxy button housing and 1000 m/s2 shock rating suit it for direct mounting on moving fixtures or workpiece carriers rather than a stationary read point only. A minimum 15 mm mounting distance from metal surfaces is required to avoid detuning the antenna coil, so recessed or plastic carrier mounting is preferred over direct metal contact.

Applications

Used for workpiece and carrier identification in RF200/RF300/MOBY D tracking systems on production lines, where read/write memory travels with the part through the process instead of only an ID being read.
