Siemens 6GT2600-0AE00 SIMATIC RF300 MDS D126 Transponder 13.56MHz ISO 15693 RFID Transponder

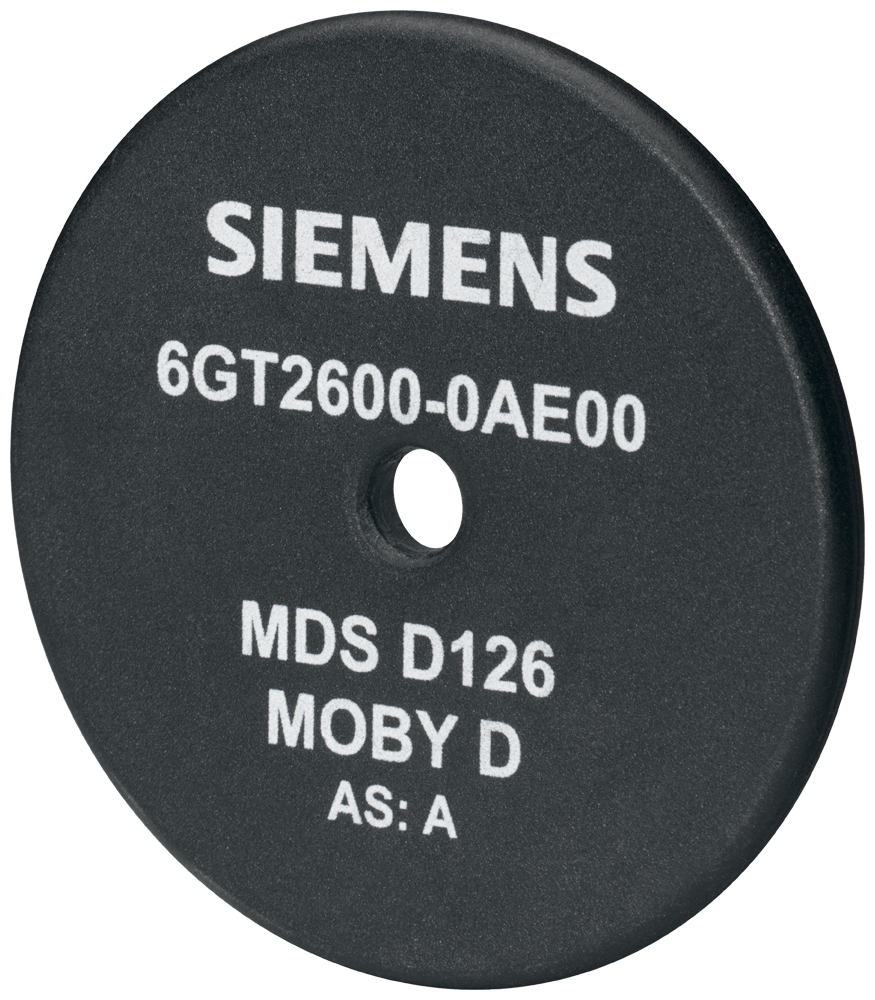

The Siemens 6GT2600-0AE00 MDS D126 is a disk-style RFID transponder for RF200, RF300, and MOBY D systems, operating at 13.56 MHz on the ISO 15693 protocol with 112 bytes of user memory. It measures 50 mm in diameter by 3.6 mm high, is rated IP68, and ships in minimum order quantities of 50 units.

Technical Specifications

Certifications & Standards

• EPD

Selection Notes

The 112-byte user memory and ISO 15693 protocol put the MDS D126 at the compact end of the RF300/MOBY D tag range, sufficient for a part ID or short routing code but not for storing full work-order data, which calls for a higher-memory MDS tag in the same series. The IP68 rating and PA6.6 GF housing allow direct mounting on machine tooling or conveyor fixtures exposed to washdown or coolant, unlike lower-protection tag variants meant for enclosed cabinets.

Applications

Used for part and carrier identification on RF200/RF300 and MOBY D read/write systems in machining, assembly, and conveyor tracking applications where tags are mounted on metal fixtures and need to survive washdown or coolant exposure.
