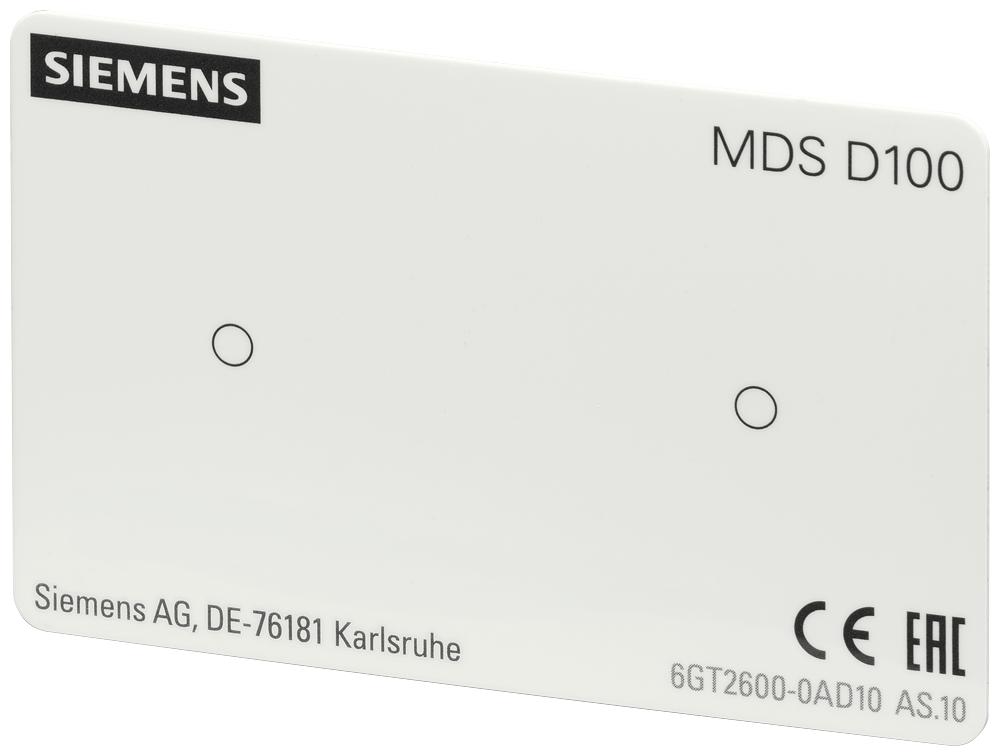

Siemens 6GT2600-0AD10 SIMATIC RFID MDS D100 ISO 15693 112-Byte RFID Transponder Card

The Siemens 6GT2600-0AD10 MDS D100 is an ISO 15693 RFID transponder card for RF200, RF300, and MOBY D reader systems, built on an NXP I-Code SLI chip with 112 bytes of user memory at 13.56 MHz. Rated IP68 and specified for -25...+80 degrees C read/write operation, it withstands washdown and high-temperature environments where card-format tags typically fail.

Technical Specifications

Certifications & Standards

• EPD

Selection Notes

The 112-byte user memory on the NXP I-Code SLI chip fits basic ID or routing data rather than large on-tag data sets, so pair it with a database-driven MES if more storage is needed. Being ISO 15693 standard means it works with any reader supporting that air interface, not only Siemens RF200/RF300 hardware, which simplifies mixed-vendor rollouts. The IP68 rating and -25...+80 degrees C range let it survive washdown and thermal cycling that a standard printed label cannot, and the 20 mm minimum mounting distance from metal is worth checking before fixing it to a steel pallet or fixture, since close metal proximity detunes the antenna. It ships with a minimum order quantity of 50 units.

Applications

Pallet, container, and carrier identification in RF200/RF300 and MOBY D tracking systems, including washdown-capable production and logistics environments such as food, beverage, and automotive lines.
