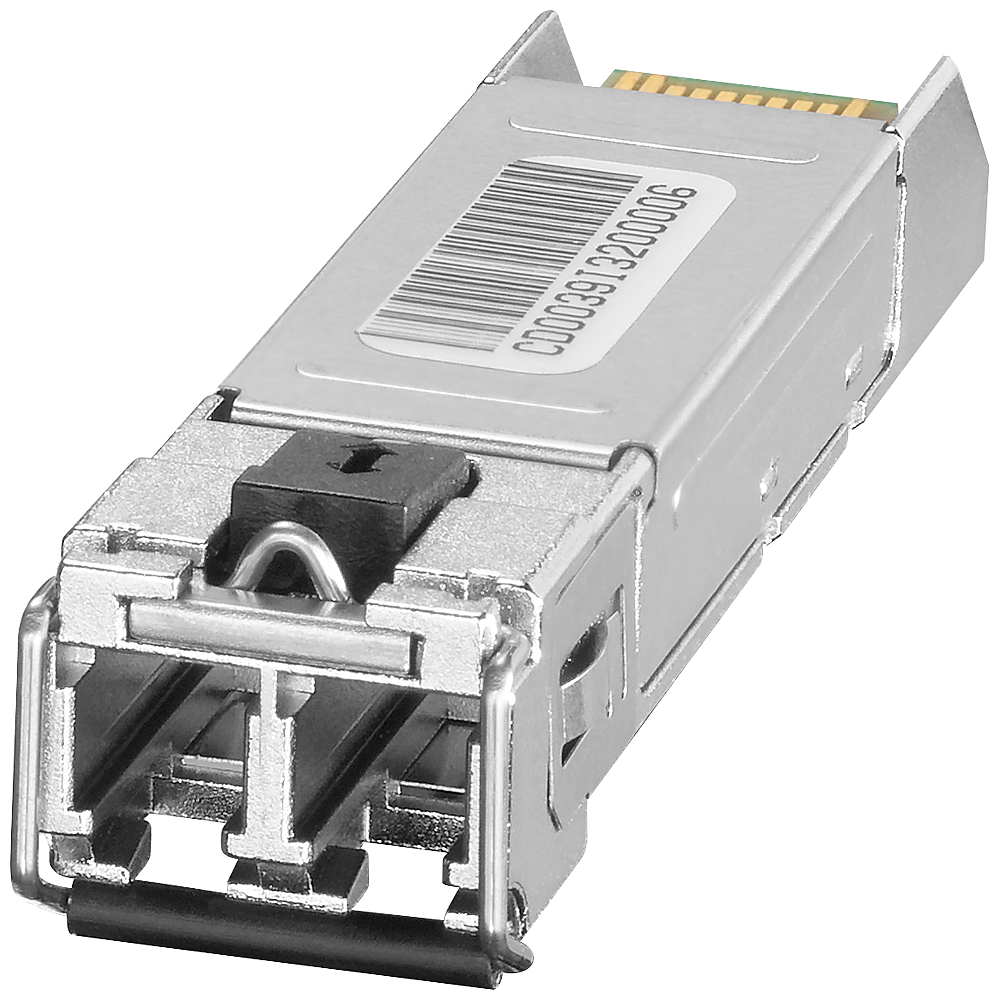

Siemens 6GK5992-1AL00-8AC0 SCALANCE X SFP992-1 1000BASE-SX Multimode LC SFP Transceiver Module 10-Pack

The Siemens 6GK5992-1AL00-8AC0 SFP992-1 is a plug-in SFP transceiver for SCALANCE X switches, providing one 1000 Mbit/s multimode LC port with an 850 nm optical wavelength and a fiber range of 0.35 to 0.75 km. It uses the 1000BASE-SX transmission method and is supplied as a 10-piece pack for stocking spare or expansion transceivers across multiple switch ports.

Technical Specifications

Certifications & Standards

• CE
• C-Tick
• BV

Selection Notes

The 850 nm multimode LC port and 0.35-0.75 km range fit fiber runs between SCALANCE X switches on the same site rather than long-haul single-mode links; for longer distances a single-mode SFP variant is needed instead. The latched SFP form factor allows hot-swapping into a live switch port without powering down the rest of the ring. Ordering the 10-piece pack covers a multi-switch fiber ring or leaves spares on hand for field replacement, since SFP modules are the most common point of optical-link failure.

Applications

Fiber uplinks between SCALANCE X industrial Ethernet switches, redundant ring topologies, and extending Ethernet segments beyond copper's 100 m distance limit within a plant or building.
