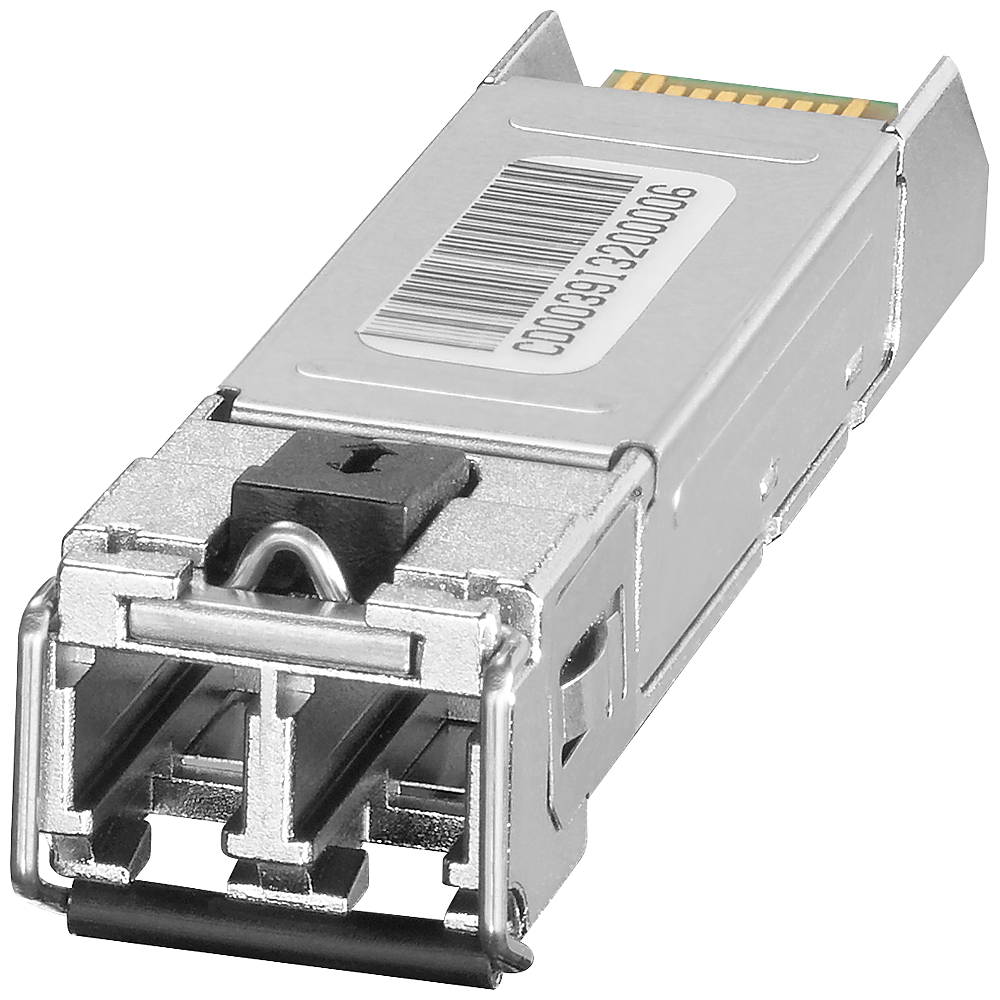

Siemens 6GK5992-1AL00-8AA0 SCALANCE X SFP992-1 1000 Mbit/s Multimode SFP Transceiver Module

The Siemens 6GK5992-1AL00-8AA0 SFP992-1 is a SCALANCE X plug-in SFP transceiver with one multimode 1000 Mbit/s LC port, supporting 1000BASE-SX transmission over 0.35 to 0.75 km at an 850 nm wavelength. It fits SCALANCE X switches equipped with SFP slots for fiber-optic uplinks. The hot-pluggable module weighs 0.02 kg and operates across a -40 to +85°C ambient temperature range.

Technical Specifications

Certifications & Standards

• CE
• C-Tick
• BV
• EPD

Selection Notes

The 0.35-0.75 km range and 850 nm multimode optics size this SFP for building- or plant-level fiber runs between SCALANCE X switches; longer single-mode links need a different SFP992 variant in the SCALANCE X accessory range. Being a hot-pluggable SFP module, it can be swapped into any SCALANCE X switch slot that supports SFP transceivers without opening the switch housing.

Applications

Provides fiber-optic uplinks between SCALANCE X industrial Ethernet switches in ring or line topologies where copper Ethernet runs would exceed 100 m or where electrical isolation between segments is needed.
