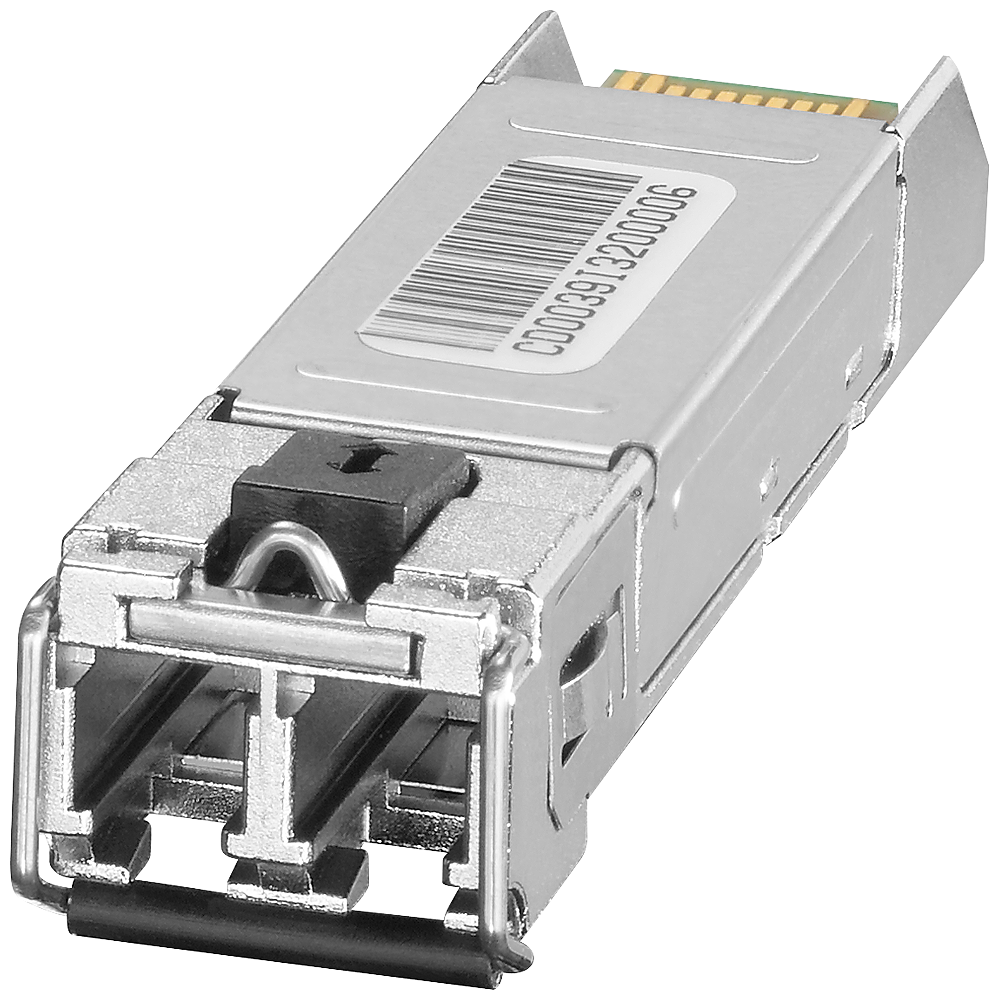

Siemens 6GK5991-1AD00-8AA0 SCALANCE X SFP991-1 100 Mbps LC SFP Transceiver Module

The Siemens 6GK5991-1AD00-8AA0 is an SFP991-1 plug-in transceiver for SCALANCE X switches, providing one 100 Mbit/s LC port over multimode glass fiber up to 5 km (with OM2++ fiber) using 100BASE-FX at 1300 nm. It is rated for hazardous-location use (ATEX Zone 2, FM Class 1 Division 2) and an operating range of -40 to +85 °C.

Technical Specifications

Certifications & Standards

• CE
• C-Tick
• BV
• EPD

Selection Notes

SFP991-1 identifies the 100 Mbit/s LC single-port variant; select it for SCALANCE X switch slots needing a 100BASE-FX fiber uplink specifically, since a Gigabit application needs a different SFP model with a higher rated transmission method. The 1300 nm wavelength and 5 km multimode range fit inter-building or long production-line fiber runs where copper Ethernet distance limits (100 m) do not reach. Hazardous-location approval (ATEX, FM) makes it usable in SCALANCE X switches installed in Zone 2 / Division 2 areas without a separate barrier.

Applications

SCALANCE X switch uplinks over multimode fiber between buildings or distant production areas, and installations in classified hazardous zones where the switch itself carries the matching approval.
