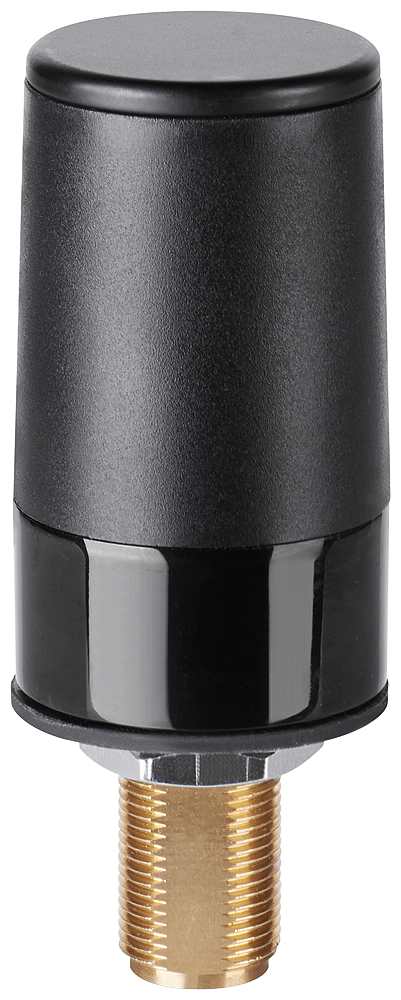

Siemens 6GK5896-4ME00-0AA0 ANT896-4ME 3 dB Omnidirectional GSM UMTS LTE Mobile Antenna

The Siemens ANT896-4ME (6GK5896-4ME00-0AA0) is an omnidirectional mobile radio antenna for GSM (2G), UMTS (3G), and LTE (4G) networks across 698-960 MHz and 1710-2700 MHz, with 3 dB gain and a female N-Connector. It is rated IP66, operates from -40 to +70C, and is designed for flat-roof control cabinet mounting.

Technical Specifications

Certifications & Standards

• RoHS

Selection Notes

Dual-band coverage across 698-960 MHz and 1710-2700 MHz lets the ANT896-4ME serve GSM, UMTS, and LTE without band-specific hardware changes, suited to remote telecontrol or router links where the available cellular band isn't fixed in advance. Its 360 degree omnidirectional pattern and 3 dB gain trade reach for coverage in all directions from a single roof-mounted point - a directional cellular antenna is the better choice if the link runs to one known base station. IP66 sealing and -40 to +70C allow direct outdoor cabinet-roof mounting without a separate enclosure.

Applications

Pairs with cellular routers or telecontrol modules for remote monitoring links - pump stations, weather stations, or mobile equipment - where a GSM/UMTS/LTE uplink replaces a wired Ethernet connection.
