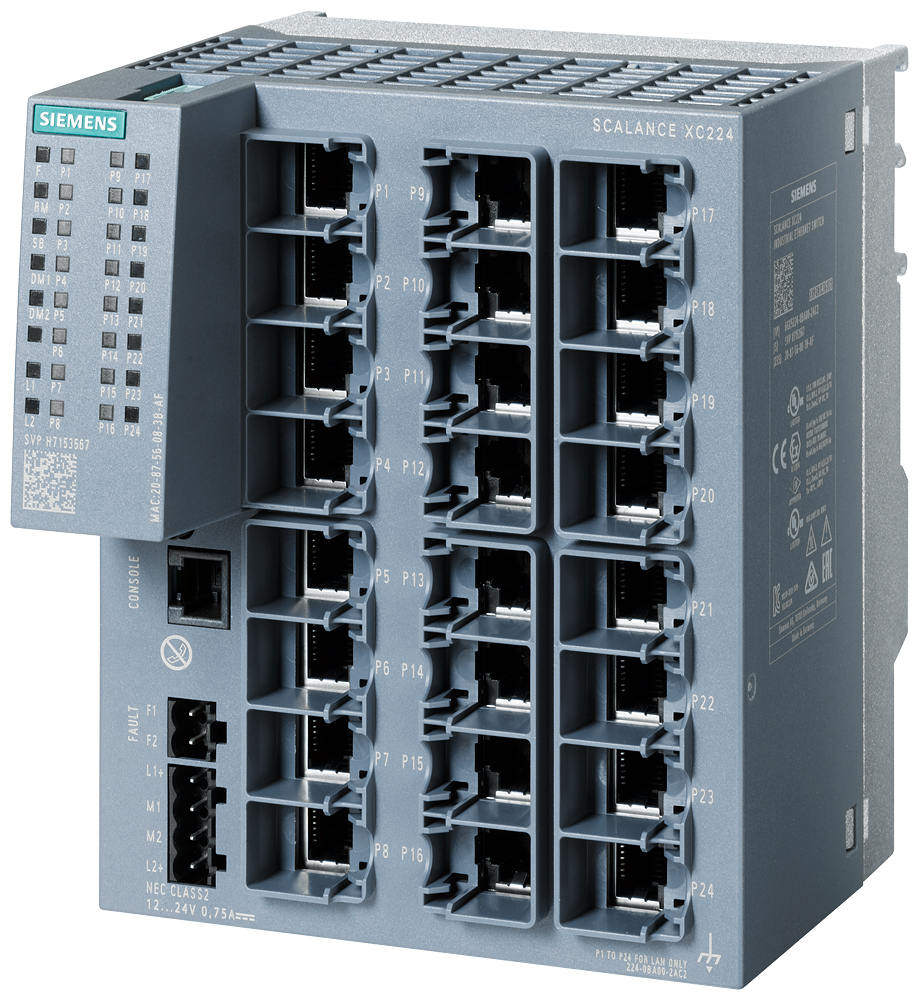

Siemens 6GK5224-0BA00-2AC2 SCALANCE XC224 24-Port 10/100 Mbit/s Managed Industrial Ethernet Switch

The Siemens SCALANCE XC224 (6GK5224-0BA00-2AC2) is a managed Layer 2 Industrial Ethernet switch with 24x 10/100 Mbit/s RJ45 ports, a C-PLUG slot for configuration transfer, and PROFINET conformity class B. It runs from a redundant 24 V DC supply, operates across -40 to +70C - wider than the XB-series' 0 to +60C - and carries IP20 protection with DIN rail, S7 rail, or wall mounting.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULhazloc
• CCC
• FM registration

Selection Notes

The XC224 extends the XC-series' -40 to +70C wide-temperature range to 24 managed ports, with a C-PLUG slot that lets a spare unit inherit a failed switch's configuration without a PC - useful where field replacement has to happen fast. PROFINET system redundancy and H-Sync forwarding support put it a step above the XB216 in redundant-controller topologies. Choose the 16-port XB216 instead when the segment stays indoors at 0 to +60C and doesn't need the extra 8 ports or the C-PLUG swap-out workflow.

Applications

Fits larger machine or line-level PROFINET segments needing managed redundancy - RSTP, MRP, system redundancy - across 24 ports, including outdoor or unheated-cabinet installations where the -40 to +70C rating matters.
