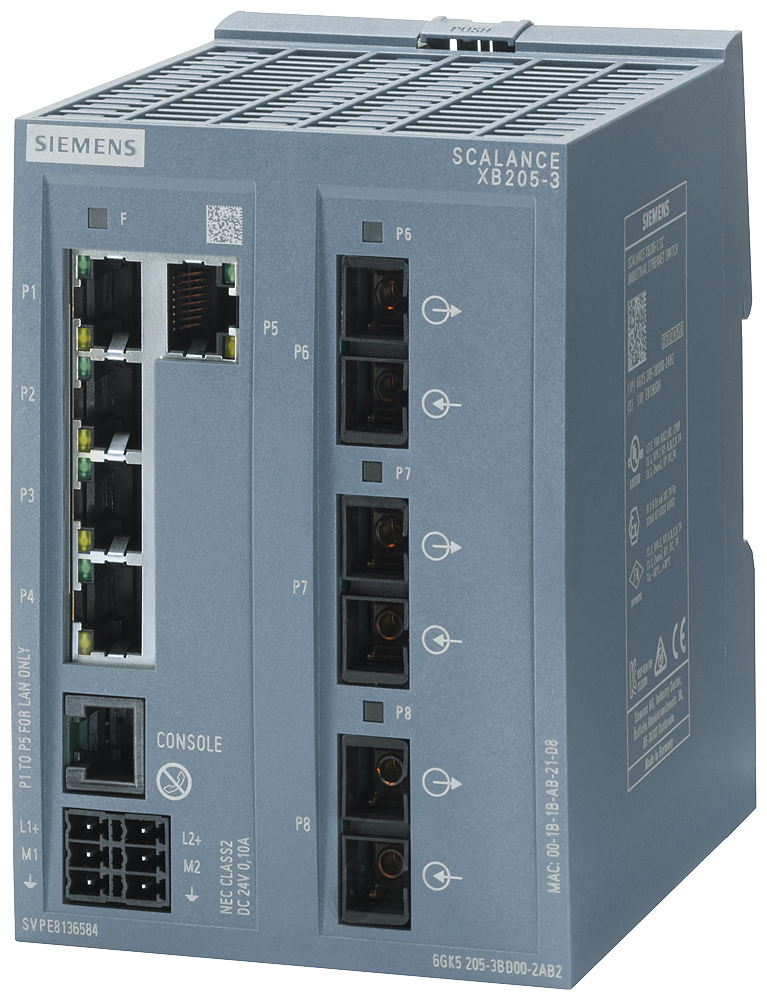

Siemens 6GK5205-3BD00-2AB2 SCALANCE XB205-3 5x RJ45 3x SC Fiber Managed Ethernet Switch

The Siemens 6GK5205-3BD00-2AB2 SCALANCE XB205-3 is a managed Layer 2 Industrial Ethernet switch with five 10/100 Mbit/s RJ45 ports and three 100 Mbit/s multimode fiber ports on SC connectors, certified to IEC 62443-4-2. It supports MRP and HRP ring redundancy, PROFINET conformity class B, and is rated for 0 ... +60 °C operation.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• RCM
• IEC 62443-4-2

Selection Notes

Pick the SC-port 3BD00 variant over the ST-port 3BB00 sibling to match SC fiber terminations already installed in the plant — the electrical specification and management feature set are otherwise identical. Being managed, this switch adds MRP/HRP ring redundancy, VLANs, and PROFINET IO diagnostics that the unmanaged XB004 series lacks, which matters where a ring topology needs sub-300 ms reconfiguration or where SNMP-based network monitoring is required.

Applications

Backbone or ring-topology switching for PROFINET machine networks needing redundancy, VLAN segmentation, and remote diagnostics, with multimode SC fiber uplinks between panels or cells.
