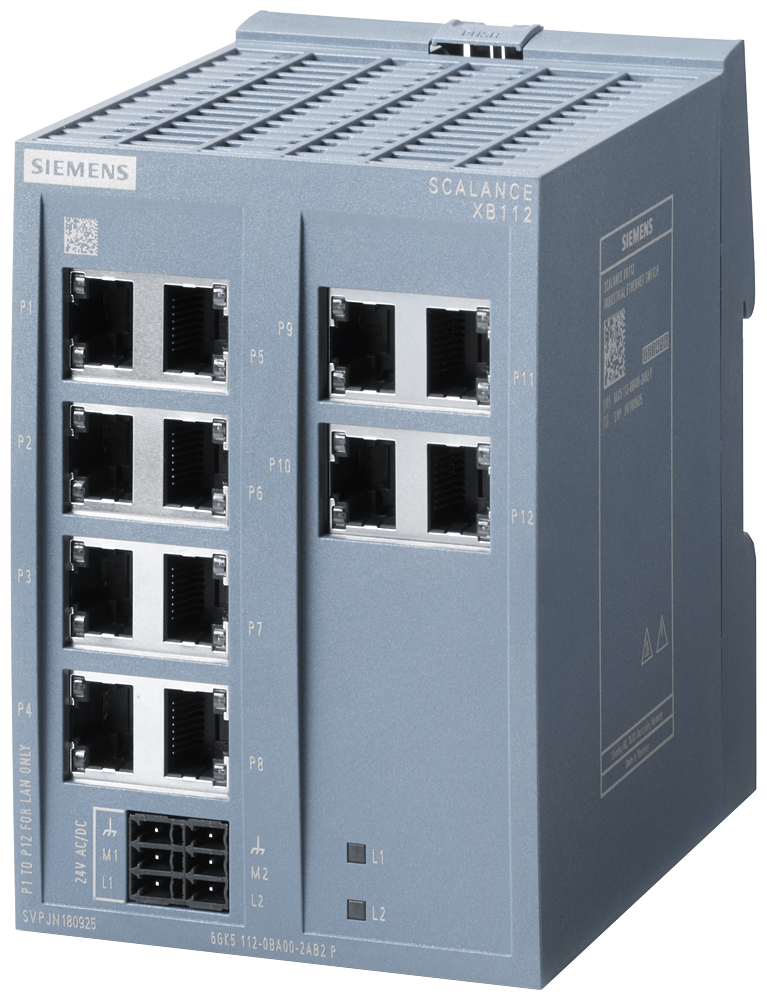

Siemens 6GK5112-0BA00-2AB2 SCALANCE XB112 12-Port Unmanaged Industrial Ethernet Switch

The Siemens SCALANCE XB112 (6GK5112-0BA00-2AB2) is an unmanaged industrial Ethernet switch with 12 RJ45 ports at 10/100 Mbit/s, built for small star and line topologies. It runs on a redundant 24V AC/DC supply (19.2-28.8V), draws 4.8W, and carries an IP20 rating with LED diagnostics on a DIN-rail-mount compact housing.

Technical Specifications

Certifications & Standards

• CE
• cULus
• KC
• RCM
• ATEX
• UKEX
• IECEx
• ULhazloc
• CCC-Ex
• FM

Selection Notes

This unmanaged 12-port variant fits small star or line network expansions where centralized management isn't needed; step up to a managed SCALANCE switch if VLAN, port mirroring, or ring-redundancy protocols are required, since the XB112's verified redundancy feature is PRP (Parallel Redundancy Protocol), not MRP. The dual 24V supply inputs with independent 0.6A/60V fusing support supply redundancy without an external UPS.

Applications

Fits DIN-rail control cabinets needing a compact 12-port unmanaged switch for star or line Ethernet topologies, including hazardous-location panels given the ATEX, IECEx, UKEX, FM, and CCC-Ex approvals.
