Siemens 6GK1907-0DC10-6AA3 SCALANCE W IE Power M12 Cable Connector PRO Industrial Network Connector

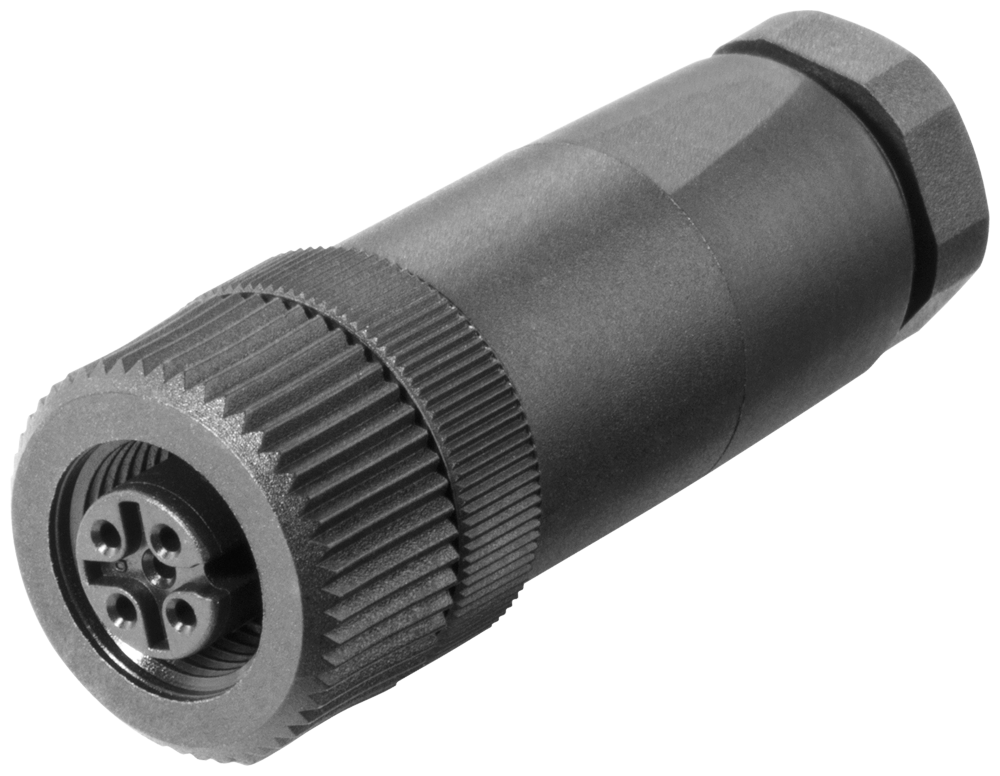

The Siemens 6GK1907-0DC10-6AA3 is an IE Power M12 Cable Connector PRO, a 4-pole A-coded M12 field power socket for supplying 24 V DC to SCALANCE W-700 or X208 PRO devices. It ships as a 3-unit pack with a plastic enclosure, screwed M12 locking, and integrated screw contacts for a 2-core power cable.

Technical Specifications

Certifications & Standards

• RoHS
• UL

Selection Notes

The A-coded pinout is specific to power delivery, not data, so this connector pairs with a separate D-coded IE FC M12 Plug PRO for Ethernet on the same SCALANCE W-700 or X208 PRO unit rather than combining power and data in one plug. IP65/67 sealing and a -40 to +70 °C range match it to outdoor or exposed wireless access point installations rather than cabinet-mounted gear. The 0.75 mm² screw-terminal rating sets the practical cable run length for a given supply drop at 24 V DC.

Applications

Field power wiring to outdoor or exposed SCALANCE W-700 wireless access points and X208 PRO switches, alongside a separate M12 data connector on the same unit.
