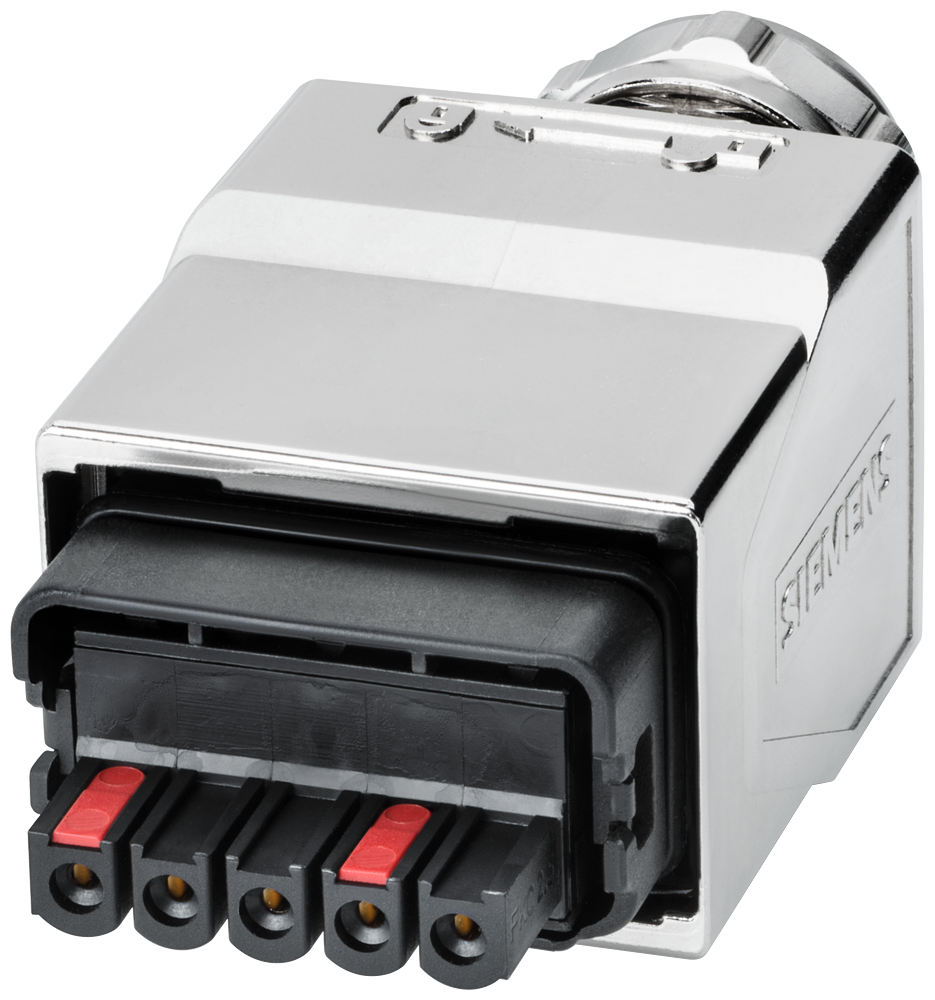

Siemens 6GK1907-0AB11-6AA0 SIMATIC NET Power Plug PRO 5-Pole IP65/67 Industrial Network Connector

The Siemens 6GK1907-0AB11-6AA0 is a Power Plug PRO push-pull connector, a 5-pole field-assembly power connector with spring-loaded contacts for 2 x 24 V DC supply lines in a metal housing rated IP65/67. It accepts cable diameters from 9 to 13 mm and conductor cross-sections from 1.5 to 2.5 mm², with a 180° cable outlet.

Technical Specifications

Certifications & Standards

• RoHS
• UL

Selection Notes

The metal push-pull housing and IP65/67 rating set this connector apart from a standard RJ45 field connector: it is built for on-machine or outdoor power drops rather than cabinet-internal wiring. The 9-13 mm cable diameter and 1.5-2.5 mm² conductor range fit typical 24 V DC power-line cable, and the -40 to +85 °C operating range covers unheated enclosures and outdoor cabinets.

Applications

Field-terminate 24 V DC power supply lines to push-pull-connectorized network components or terminal equipment where a sealed, vibration-resistant metal connector is needed instead of a standard terminal block.
