Siemens 6GK1906-0EB00 SIMATIC NET Power M12 Cable Connector PRO L-Coded IP67/69K Industrial Network Connector

% $-54.65

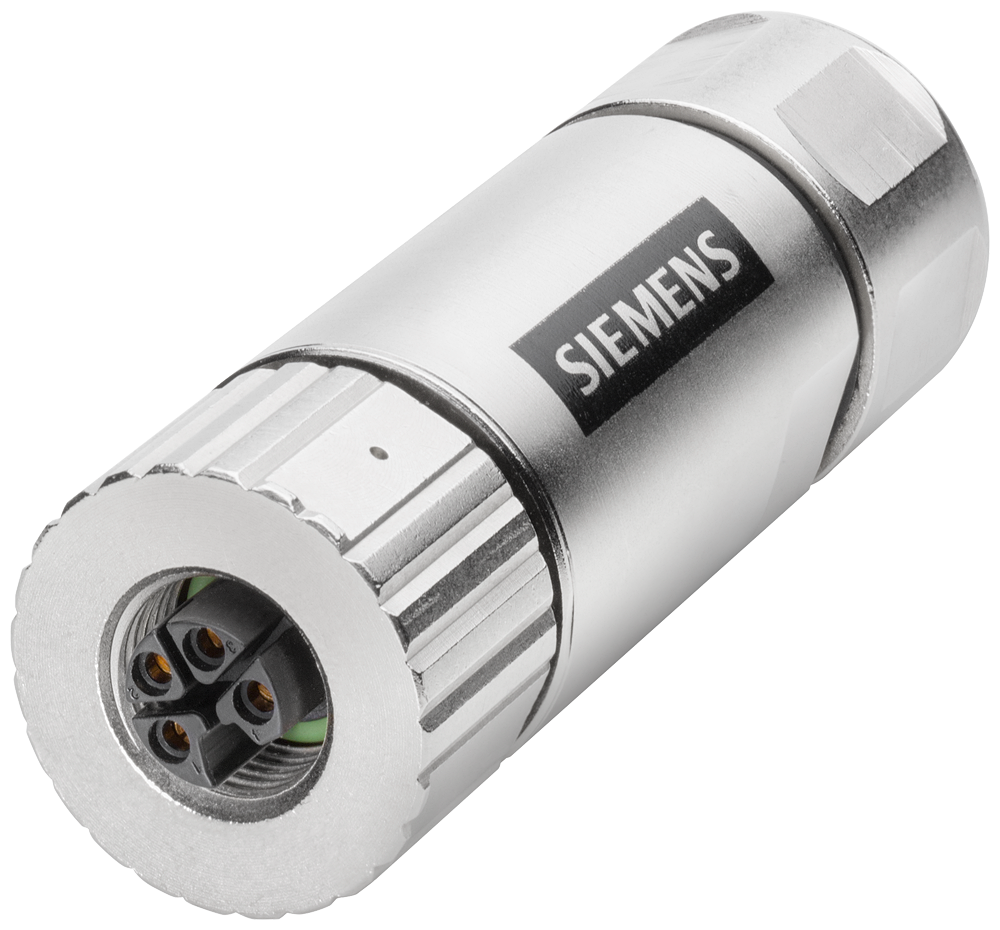

Siemens 6GK1906-0EB00 Power M12 Cable Connector PRO L-Coded - IP67/69K
Siemens 6GK1906-0EB00 Power M12 Cable Connector PRO L-Coded - IP67/69K

Siemens 6GK1906-0EB00 SIMATIC NET Power M12 Cable Connector PRO L-Coded IP67/69K Industrial Network Connector

Brand: Siemens
Reference No: 6GK1906-0EB00
Catalog No: 6GK1906-0EB00
Series: SIMATIC NET
Tariff Code (HS): 85366990
Rated Current: 12 A (16 A max)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$54.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK1906-0EB00 is a Power M12 Cable Connector PRO, an L-coded, field-wireable 4-pole connector rated 12 A at 70 degC for 24 V DC power supply cabling. Its metal housing is rated IP67/69K, accepts a 7-9 mm cable diameter and 1.5-2.5 mm squared conductors, and a 0.6 N.m screwed coupling locks the M12 thread with a 180-degree cable outlet.

Technical Specifications

SKU 6GK1906-0EB00
Brand Siemens
Series SIMATIC NET
Product Type Designation Power M12 Cable Connector PRO
Product Description M12 plug-in connector with socket insert, rated current 12 A (70 degC), 4-pole, L-coded
Suitability for Use For 24 V DC power supply of devices with L-coded M12 interface
Number of Electrical Connections 1
Connection Type M12 connector (female contact insert, 4-pole, L-coded)
Ampacity of Contacts, Maximum 16 A
Ampacity up to 70 degC, Maximum 12 A
Enclosure Material Metal
Locking Mechanism Screwed joint
Max. Tightening Torque 0.6 N.m
M12 Connector Coding L
Type of Cable Outlet 180 degree cable outlet
Width 23 mm
Height 23 mm
Depth 66.1 mm
Net Weight 96 g
Connectable Cable Diameter 7 ... 9 mm
Connectable Conductor Cross-Section 1.5 ... 2.5 mm squared
Operating Temperature -40 ... +105 degC
Storage Temperature -40 ... +105 degC
Transport Temperature -40 ... +105 degC
Chemical Resistance to Water Resistant
Protection Class IP IP67/69K
Silicon-Free Yes
Strain Relief Yes
Country of Origin DE

Certifications & Standards

  • RoHS
  • UL

Selection Notes

The L-coding on this M12 connector is keyed for 24 V DC power circuits, so it cannot be mismated with a data-carrying B- or D-coded M12 port on the same panel. Its 12 A rating at 70 degC covers most 24 V DC field-device loads without derating, and the 16 A contact maximum leaves headroom versus the continuous 12 A figure. The 180-degree cable outlet and 7-9 mm cable diameter range suit a straight cable run into a junction box rather than a tight 90-degree bend.

Technical Details

Short Description
Power M12 Cable Connector PRO, L-coded, 12 A at 70 degC, IP67/69K metal housing, field-wireable.
Rated Current (Ampere)
12 A (16 A max)
Protection Type
IP67/69K
Catalog No
6GK1906-0EB00
Standards
RoHS conformity, UL approval
Delivery Date (Days)
10-15 days
Model Number
6GK1906-0EB00
Tariff Code
85366990
