Siemens 6GK1905-0FC00 7/8 Power T-TAP PRO Industrial Network Connector - IP65/67

Siemens 6GK1905-0FC00 SIMATIC NET 7/8 Power T-TAP PRO IP65/67 Industrial Network Connector

Name: Siemens 6GK1905-0FC00 SIMATIC NET 7/8 Power T-TAP PRO IP65/67 Industrial Network Connector
Brand: Siemens
SKU: 6GK1905-0FC00
Price: 422.68 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Siemens

Reference No: 6GK1905-0FC00

Catalog No: 6GK1905-0FC00

Series: SIMATIC NET

Tariff Code (HS): 85366990

Stock: 0

Delivery time: 10-15 business day(s)

Shipping Origin: Türkiye EXW

$422.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

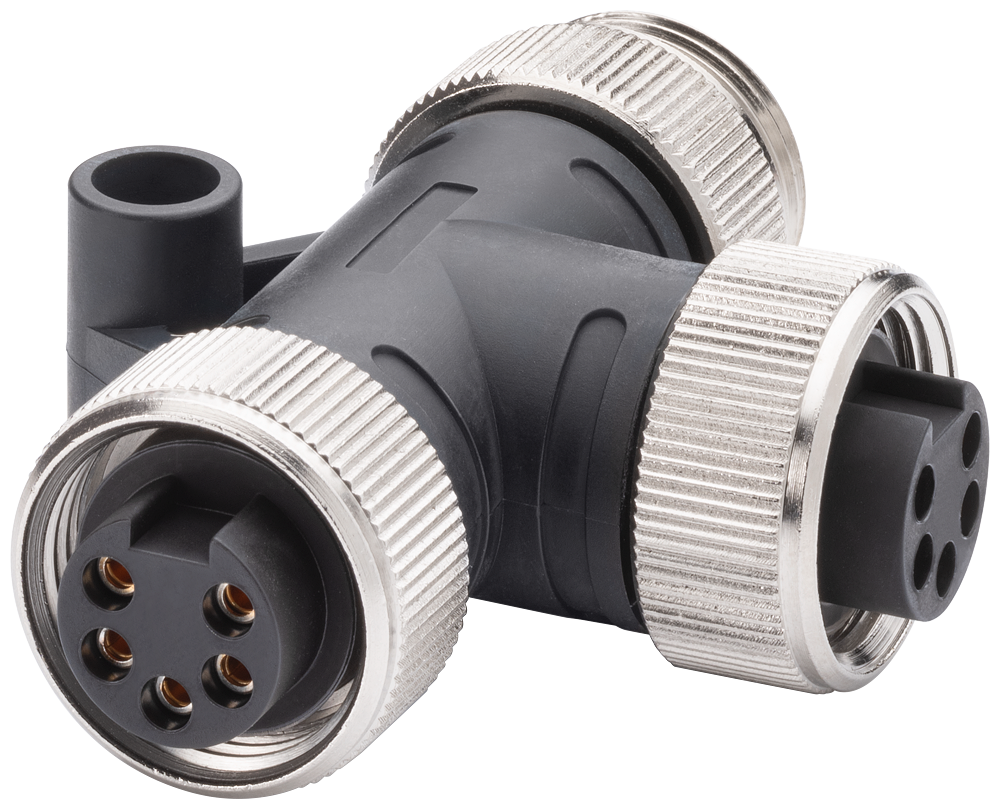

The Siemens 6GK1905-0FC00 is a 7/8-inch Power T-TAP PRO T-connector that splits a 24 V DC power trunk line into a branch feed for ET 200pro modules, using two 7/8-inch female socket inserts and one male contact insert, each 5-pole. The metal housing carries an IP65/67 rating, resists water, and holds a -40 to +70 degC operating range with a 1.5 N.m maximum tightening torque on the screwed joint.

Technical Specifications

SKU	6GK1905-0FC00
Brand	Siemens
Series	SIMATIC NET
Product Type Designation	7/8-inch Power T-Tap PRO
Product Description	Energy-T-connector with two 7/8 inch socket inserts and one 7/8 inch pin insert, each 5-pole
Suitability for Use	For power connection and distribution to ET200pro modules
Number of Electrical Connections	3
Connection Type	7/8 inch plug (2 x female insert, 1 x male insert)
Enclosure Material	Metal
Locking Mechanism	Screwed joint
Max. Tightening Torque	1.5 N.m
Width	58.5 mm
Height	73.5 mm
Depth	26.5 mm
Net Weight	112 g
Operating Temperature	-40 ... +70 degC
Storage Temperature	-40 ... +80 degC
Transport Temperature	-40 ... +80 degC
Chemical Resistance to Water	Resistant
Protection Class IP	IP65/67
Silicon-Free	Yes
Strain Relief	Yes
Country of Origin	DE

Certifications & Standards

RoHS

Selection Notes

The two 7/8-inch female inserts plus one male insert let this T-TAP branch a 24 V DC power trunk to a second ET 200pro node without cutting the main cable, since the through-connection stays intact. Its IP65/67 rating and metal housing suit machine-mounted installs exposed to washdown or coolant spray across the full -40 to +70 degC range. The 1.5 N.m torque limit keeps the M12-style screwed joint from being over-tightened during field assembly.

Technical Details

Short Description

7/8-inch Power T-TAP PRO T-connector, IP65/67, metal housing, splits 24 V DC power for ET 200pro modules.

Protection Type

IP65/67

Catalog No

6GK1905-0FC00

Standards

RoHS conformity

Delivery Date (Days)

10-15 days

Model Number

6GK1905-0FC00

Tariff Code

85366990
