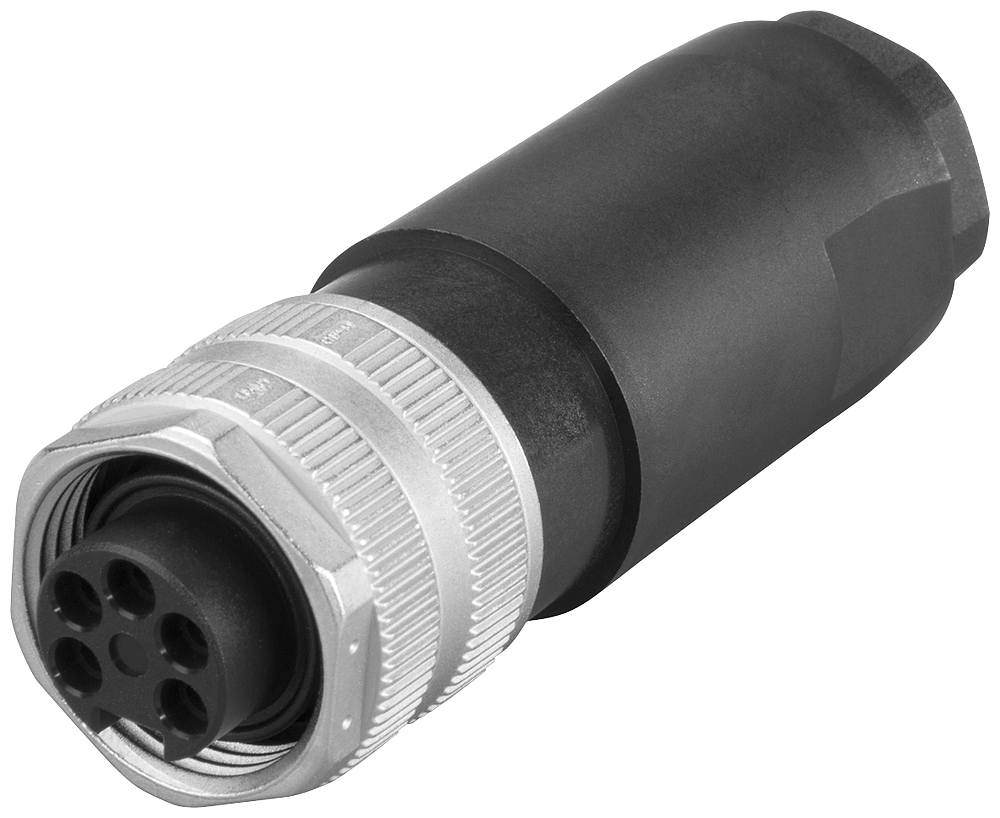

Siemens 6GK1905-0FB00 SIMATIC NET 7/8-Inch Connector Female Insert 9A 5-Pole Field Plug

% $-162.73
Siemens 6GK1905-0FB00 7/8-inch connector - female insert, 9A 5-pole
Siemens 6GK1905-0FB00 7/8-inch connector - female insert, 9A 5-pole

Siemens 6GK1905-0FB00 SIMATIC NET 7/8-Inch Connector Female Insert 9A 5-Pole Field Plug

Brand: Siemens
Reference No: 6GK1905-0FB00
Catalog No: 6GK1905-0FB00
Series: SIMATIC NET
Tariff Code (HS): 85366990
Rated Current: 9 A
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$162.73

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK1905-0FB00 is a SIMATIC NET 7/8-inch connector with a female contact insert, rated 9 A across 5 poles, for field-wiring power cable to ET 200 stations. The metal housing is rated IP65/67, locks with a screwed joint torqued to 1.5 N-m, and terminates 10-12 mm cable through integrated screw contacts for 5-core power cable.

Technical Specifications

Catalog No 6GK1905-0FB00
SKU 6GK1905-0FB00
Brand Siemens
Series SIMATIC NET
Product Type Designation 7/8-Inch Connector
Product Description 7/8-inch connection plug with female contact insert, rated current 9 A, 5-pole
Suitability For field assembly with ET200
Electrical Connections (terminal equipment) 1
Connection Type (power cables) Integrated screw contacts for 5-core power cables
Connection Type (terminal equipment) 7/8-inch plug (female insert)
Enclosure Material Metal
Locking Mechanism Screwed joint
Tightening Torque 1.5 N·m
Cable Outlet 180°
Width 27 mm
Height 27 mm
Depth 83 mm
Net Weight 50 g
Connectable Cable Diameter 10 ... 12 mm
Connectable Conductor Cross-Section 1.5 mm²
Operating Temperature -40 ... +70 °C
Storage Temperature -40 ... +80 °C
Transport Temperature -40 ... +80 °C
Water Resistance Resistant
Protection Class IP IP65/67
Silicon-Free Yes
Strain Relief Yes
Country of Origin DE
EAN 4019169402033

Certifications & Standards

  • RoHS

Technical Details

Short Description
SIMATIC NET 7/8-inch connector, female insert, 9A 5-pole, IP65/67, field assembly for ET 200.
Rated Current (Ampere)
9 A
Protection Type
IP65/67
Catalog No
6GK1905-0FB00
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6GK1905-0FB00
Tariff Code
85366990
