Siemens 6GK1901-1BB10-6AA0 SIMATIC NET IE RJ45 Plug PRO Push-Pull IP65/67 Connector

% $-42.98

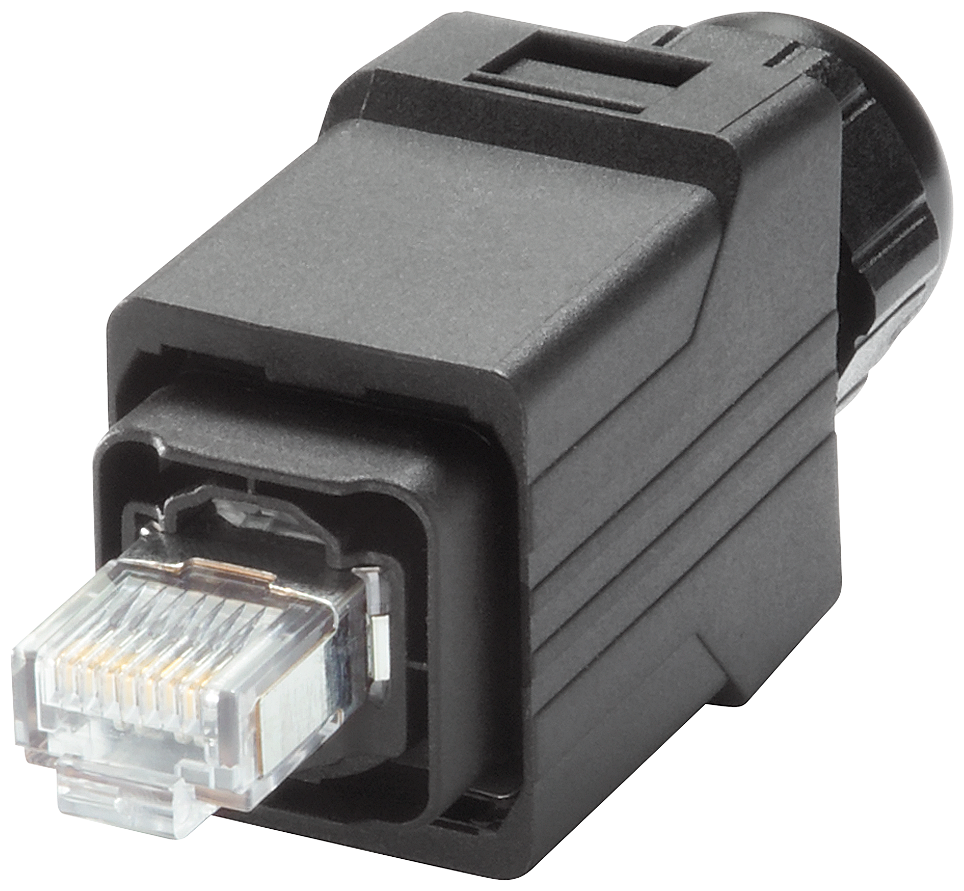

Siemens 6GK1901-1BB10-6AA0 IE RJ45 Plug PRO push-pull network connector
Siemens 6GK1901-1BB10-6AA0 IE RJ45 Plug PRO push-pull network connector

Siemens 6GK1901-1BB10-6AA0 SIMATIC NET IE RJ45 Plug PRO Push-Pull IP65/67 Connector

Brand: Siemens
Reference No: 6GK1901-1BB10-6AA0
Catalog No: 6GK1901-1BB10-6AA0
Series: SIMATIC NET
Tariff Code (HS): 85366990
Communication: Industrial Ethernet 10/100 Mbit/s, PoE+, Cat5
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$42.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GK1901-1BB10-6AA0 is a SIMATIC NET IE RJ45 Plug PRO, a push-pull field-assembly connector that terminates 4-wire TP FastConnect installation cable into an RJ45 interface for high-protection device connections. The plastic housing is rated IP65/67, supports PoE+ and Cat5 structured cabling, and carries 10/100 Mbit/s Industrial Ethernet through cut-and-clamp contacts on AWG22 cable.

Technical Specifications

Catalog No 6GK1901-1BB10-6AA0
SKU 6GK1901-1BB10-6AA0
Brand Siemens
Series SIMATIC NET
Product Type Designation IE RJ45 Plug PRO (Push Pull)
Product Description RJ45 data connector
Suitability Field-assembly connector for push-pull device connection in high degree of protection
Transfer Rate (Industrial Ethernet) 10, 100 Mbit/s
Electrical Connections (FC TP cables) 4
Electrical Connections (terminal equipment) 1
Connection Type (FC TP cables) Integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22
Connection Type (terminal equipment) RJ45 connector (Push Pull device connection)
Enclosure Material Plastic
Locking Mechanism Push-pull
Cable Outlet 180°
Width 22 mm
Height 30 mm
Depth 67.7 mm
Net Weight 68.8 g
Connectable Cable Diameter 6.5 mm
Connectable Conductor Cross-Section 0.33 mm²
Operating Temperature -40 ... +70 °C
Storage Temperature -40 ... +70 °C
Transport Temperature -40 ... +70 °C
Water Resistance Resistant
Protection Class IP IP65/67
PoE Capability Yes
PoE+ Capability Yes
Silicon-Free Yes
Strain Relief Yes
Structured Cabling Standard Cat5
Country of Origin DE
EAN 4019169852784

Certifications & Standards

  • RoHS
  • UL

Technical Details

Short Description
SIMATIC NET IE RJ45 Plug PRO, IP65/67 push-pull field-assembly RJ45 connector, PoE+, Cat5.
Protection Type
IP65/67
Catalog No
6GK1901-1BB10-6AA0
Standards
RoHS conformity, UL approval
Delivery Date (Days)
10-15 days
Model Number
6GK1901-1BB10-6AA0
Tariff Code
85366990
