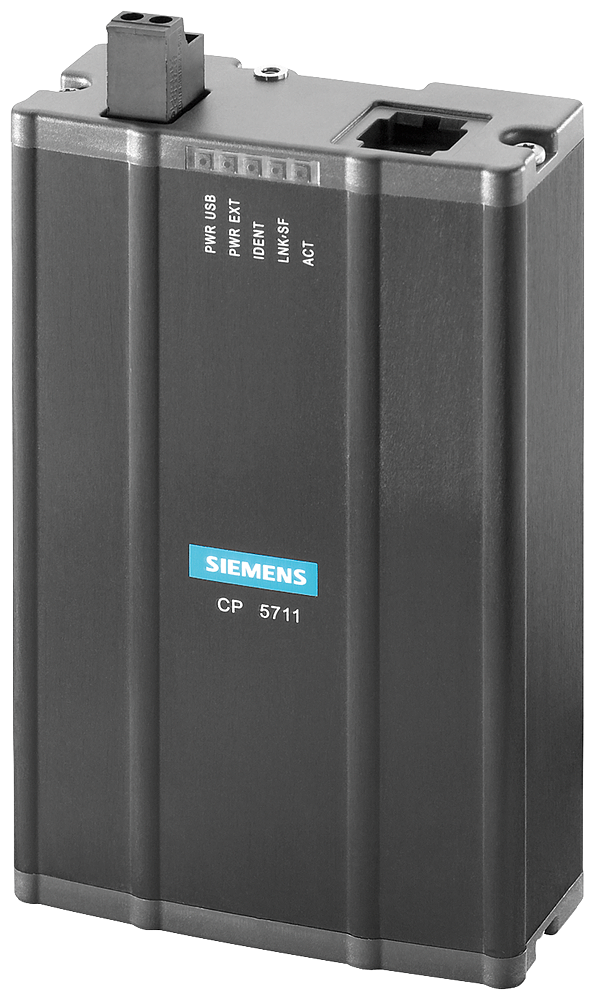

Siemens 6GK1571-1AA00 SIMATIC NET CP 5711 USB PROFIBUS Communication Processor Card

The Siemens 6GK1571-1AA00 CP 5711 is a USB 2.0 communications processor that connects a PG or notebook to PROFIBUS or MPI at 9.6 kbit/s to 12 Mbit/s through a 9-pin Sub-D RS 485 port, and ships with a 2 m USB cable. It runs from the USB bus at 5 V/0.5 A, or from an optional external 18-30 V DC supply drawing up to 0.3 A, and mounts on a 35 mm DIN rail.

Technical Specifications

Certifications & Standards

• EPD

Selection Notes

USB power from the PC or notebook removes the need for a separate power brick in the field, unlike the PCI/PCI Express cards in this family which draw power from the backplane bus and cannot be used with a notebook at all. The optional external 24 V DC input is there for setups where USB power alone is not adequate, without losing USB connectivity. Its 64-device DP master limit and 8 S7/PG connections match the CP 5612/CP 5622 cards, so it fits an engineering or diagnostic role rather than a fixed 124-device production master.

Applications

Connecting a service notebook or PG without a free PCI/PCIe slot to a PROFIBUS DP or MPI network for programming, diagnostics, or a DP master function within the 64-device limit.
