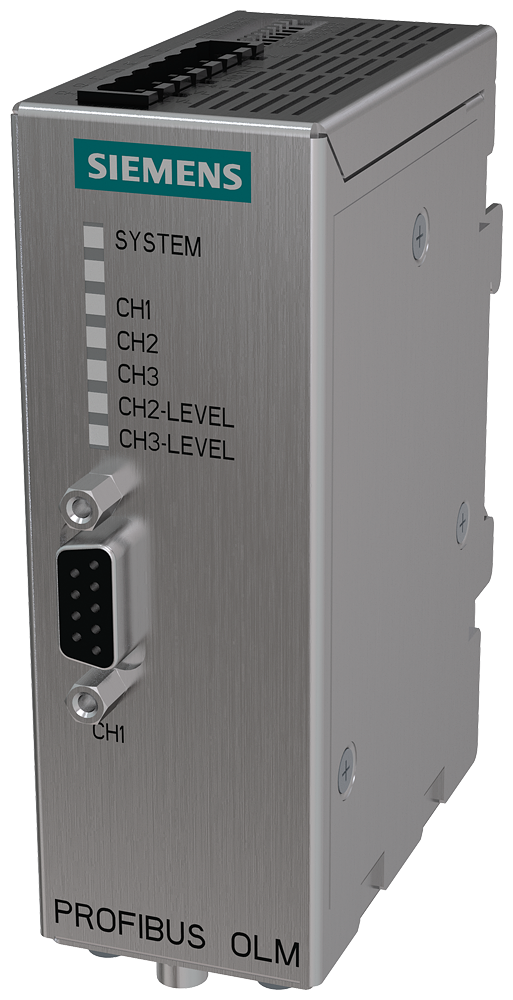

Siemens 6GK1503-3CC00 SIMATIC NET PROFIBUS OLM/G12-1300 V4.0 Networking Accessory

The Siemens 6GK1503-3CC00 is a PROFIBUS OLM/G12-1300 V4.0 optical link module that bridges one RS 485 PROFIBUS segment to two single-mode glass fiber BFOC ports at a 1310 nm wavelength, carrying 9.6 kbit/s to 12 Mbit/s (or 45.45 kbit/s for PROFIBUS PA) over runs up to 15 km. It runs on 24 V DC, includes a signaling contact and test port, and supports ring redundancy.

Technical Specifications

Certifications & Standards

• CE
• C-Tick
• EPD

Selection Notes

The single-mode 1310 nm optics push the reach to 15 km, five times the 3 km ceiling of the multimode glass OLM variants, so it fits a segment where the distance itself rules out any multimode option. The test port lets a technician check the optical link at the module without breaking the fiber run at each end. With two ports it can pass the segment through to a further node rather than dead-ending the fiber at a single connection.

Applications

Long-haul PROFIBUS DP or PA links between buildings or across a plant site where the distance exceeds multimode glass fiber range, and installations needing per-link optical test access during commissioning.
