Siemens 6GF3560-0HE10 SIMATIC MV560 X 2592 x 2048 IP67 PoE Optical Code Reader

% $-7,056.66

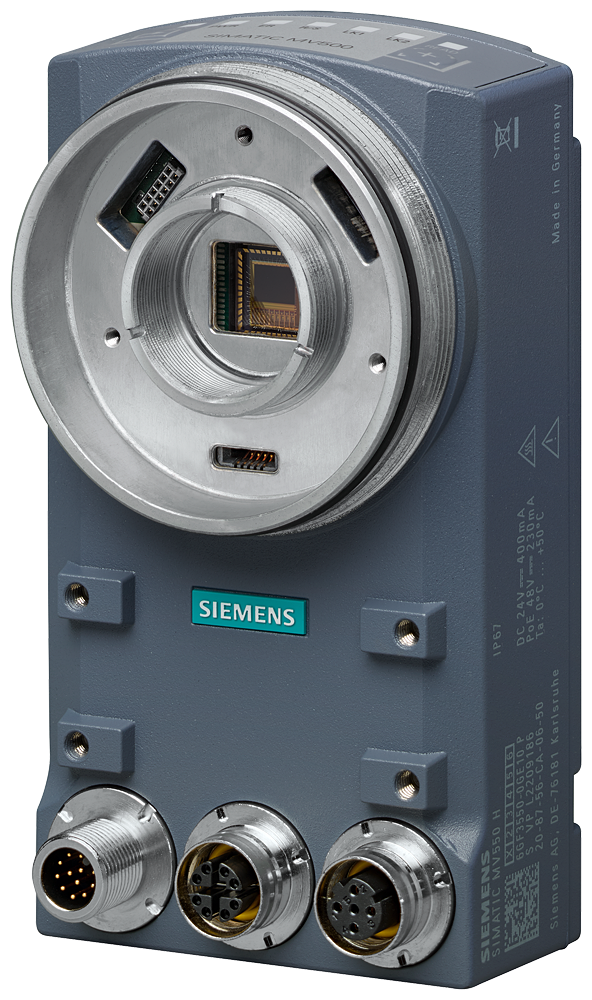

Siemens 6GF3560-0HE10 MV560 X optical code reader - IP67 PoE 2592x2048
Siemens 6GF3560-0HE10 MV560 X optical code reader - IP67 PoE 2592x2048

Siemens 6GF3560-0HE10 SIMATIC MV560 X 2592 x 2048 IP67 PoE Optical Code Reader

Brand: Siemens
Reference No: 6GF3560-0HE10
Catalog No: 6GF3560-0HE10
Series: SIMATIC MV560
Tariff Code (HS): 84719000
Rated Voltage: 24 V
Communication: PROFINET IO, TCP/IP, SNMP v1, LLDP, DCP, PoE, RS 232, RS 422
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$7,056.66

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6GF3560-0HE10 SIMATIC MV560 X is a PoE optical code reader with a 2592 x 2048 CMOS sensor for 1D and 2D code reading at up to 30 codes per second. It has an IP67 die-cast aluminum housing, an M12 PROFINET IO Ethernet port, RS 232 and RS 422 interfaces, and runs on 24 V DC (19.2-28.8 V) drawing up to 2 A.

Technical Specifications

SKU 6GF3560-0HE10
EAN 4047622558423
Brand Siemens
Series SIMATIC MV560
Product Designation Code Reader MV560 X
Supported 1D Codes Interleaved 2/5, Code 128, Code 93, Code 39, Code 32, EAN 13, EAN 8, UPC-A, UPC-E, GS1, Pharmacode, Postnet
Supported 2D Codes DMC, dot code, PDF417, QR
Image Sensor CMOS, 2592 x 2048 pixels
Image Capture Global shutter, manual or automatic exposure time
Reading Range 70-3000 mm with C-mount lens
Lens Mount C-mount
Max Picture Recording Frequency 30 Hz
Max Code Reading Rate 30 codes/s
Focusing Manual, on the lens
Industrial Ethernet Interface M12, d-coded, PoE
RS 422 Interface M12, 12-pin, male
RS 232 Interface M12, 12-pin, male
Supply Voltage Connector M12, 12-pin, male
Digital I/O Connector M12, 12-pin, male
Digital Inputs 1 (fast trigger input)
Digital Outputs 3 (1 fast strobe output, 2 potential-free NPN/PNP-capable)
Supply Voltage 24 V DC (19.2-28.8 V)
Current Consumption 0.2 A typical, 2 A maximum
Power Failure Buffering Time min. 0.01 s
Housing Material Die-cast aluminum
Housing Color Petrol blue
Protection Class IP67
Ambient Temperature, Operation up to 50 °C
Ambient Temperature, Storage/Transport -30 ... +70 °C
Relative Humidity max. 95% at 25 °C, no condensation
Shock Resistance per IEC 60068-2, 300 m/s²
Vibrational Acceleration 40 m/s²
Dimensions (W x H x D) 68 x 122 x 45 mm
Net Weight 0.55 kg
Fastening 4 x M4 screws
Display 7 LEDs
Supported Protocols LLDP, PROFINET IO, TCP/IP, SNMP v1, DCP
MTBF 66 years
Available Accessories mounting brackets, built-in/external ring lights, E-focus lens, C-mount lenses, protective lens barrels
Country of Origin Germany

Certifications & Standards

  • EPD

Selection Notes

The 2592 x 2048 sensor and 30 Hz frame rate on the MV560 X favor higher-resolution 2D code decoding over raw speed; if the line runs faster than 30 reads per second, the MV560 U variant's 1920 x 1200 sensor at 60 Hz trades resolution for throughput. IP67 and the M12 PoE interface let it mount directly on a conveyor frame without a separate junction box, and the C-mount lens connection means the working distance (70-3000 mm) is set by lens selection rather than a fixed optic.

Technical Details

Short Description
SIMATIC MV560 X optical code reader, 2592x2048 CMOS, PoE, IP67, up to 30 codes/s.
Rated Voltage (VAC)
24 V
Mounting Type
4 x M4 screws
Protection Type
IP67
Catalog No
6GF3560-0HE10
Standards
Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6GF3560-0HE10
Tariff Code
84719000
