Siemens 6FX5002-8QN08-1AF0 SINAMICS S210 One Cable Connection 5m Servo Cable

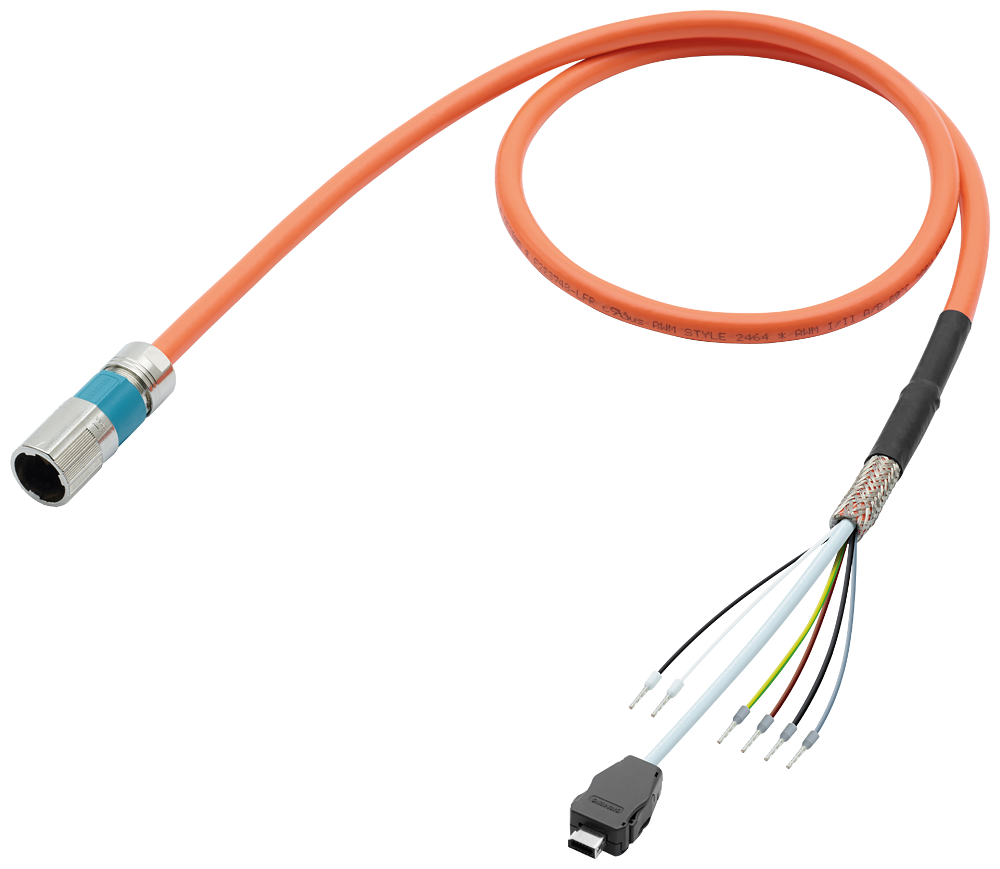

The Siemens 6FX5002-8QN08-1AF0 is a prefabricated One Cable Connection assembly for SINAMICS S210 servo systems, combining power (4G0.75 mm²), brake (2x0.5 mm²), and data (4x0.2 mm²) cores in a single 5 m MOTION-CONNECT 500 cable with a SPEED-CONNECT M17 connector and an IX data connector. Net weight is 0.945 kg.

Technical Specifications

Selection Notes

This is the 5 m length in the MOTION-CONNECT 500 One Cable Connection family for SINAMICS S210; the single SPEED-CONNECT M17 connector carries power, brake, and data signals in one run, replacing separate power and feedback cables on an S210 servo axis. DESINA-compliant construction and the 10.5 mm max outer diameter set the minimum bend radius for cable-carrier or drag-chain installation.

Applications

Motor-side power, brake, and data cabling for a SINAMICS S210 servo drive axis, typically routed in a cable carrier or drag chain between the drive and the servo motor.
