Siemens 6FX5002-5CG42-1AF0 MOTION-CONNECT 500 SPEED-CONNECT Power Cable 4x4mm² Servo Cable

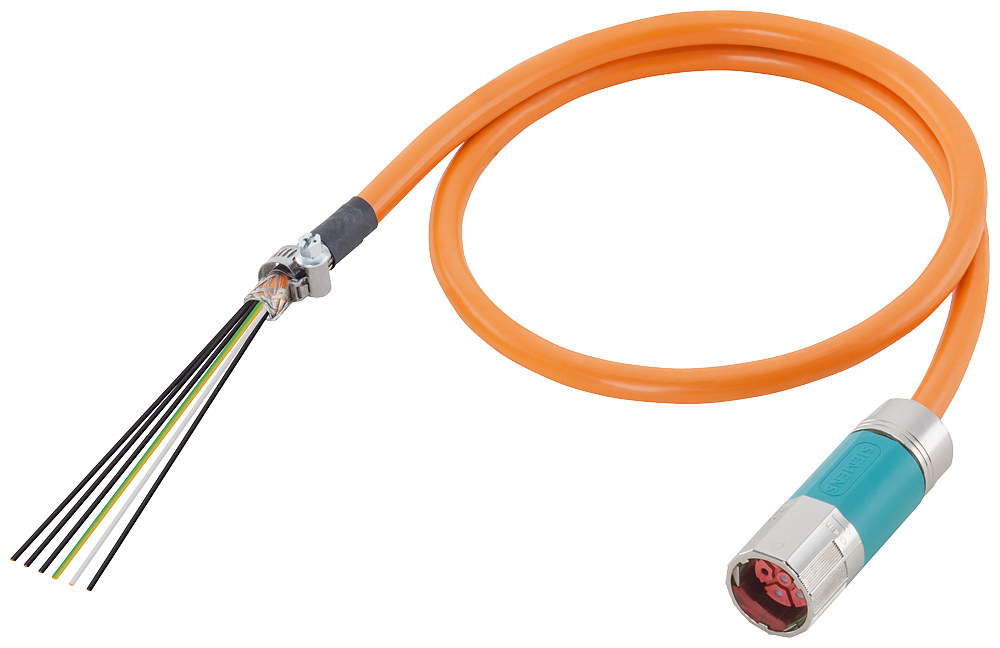

The Siemens SINAMICS MOTION-CONNECT 500 power cable 6FX5002-5CG42-1AF0 is a pre-assembled 4x4mm² motor power cable terminated with a Size 1.5 SPEED-CONNECT connector for a SINAMICS AC Drive, rated for UL/CSA and DESINA compliance with an orange PVC jacket, RAL 2003. It has a minimum bend radius of 30 degrees per meter, a maximum cable diameter of 11.4 mm, and weighs 1.72 kg.

Technical Specifications

Selection Notes

At 4 x 4 mm², this is the heaviest conductor cross-section in the Size 1.5 SPEED-CONNECT power-cable range covered here, sized for SINAMICS AC Drive axes with the highest current draw among this connector family - the 11.4 mm maximum cable diameter is also the largest, so verify cable-carrier and gland clearances accommodate it. Confirm the drive-side connector accepts Size 1.5 before ordering. The 30 degree per meter minimum bend radius applies when the cable runs through a cable carrier on a moving axis.

Applications

Power feed cable between a SINAMICS AC Drive and a SIMOTICS motor in installations using the SPEED-CONNECT quick-connect system, including moving-axis applications routed through a cable carrier.
