Siemens 6FX5002-5CG32-1AF0 MOTION-CONNECT 500 SPEED-CONNECT Power Cable 4x2.5mm² Servo Cable

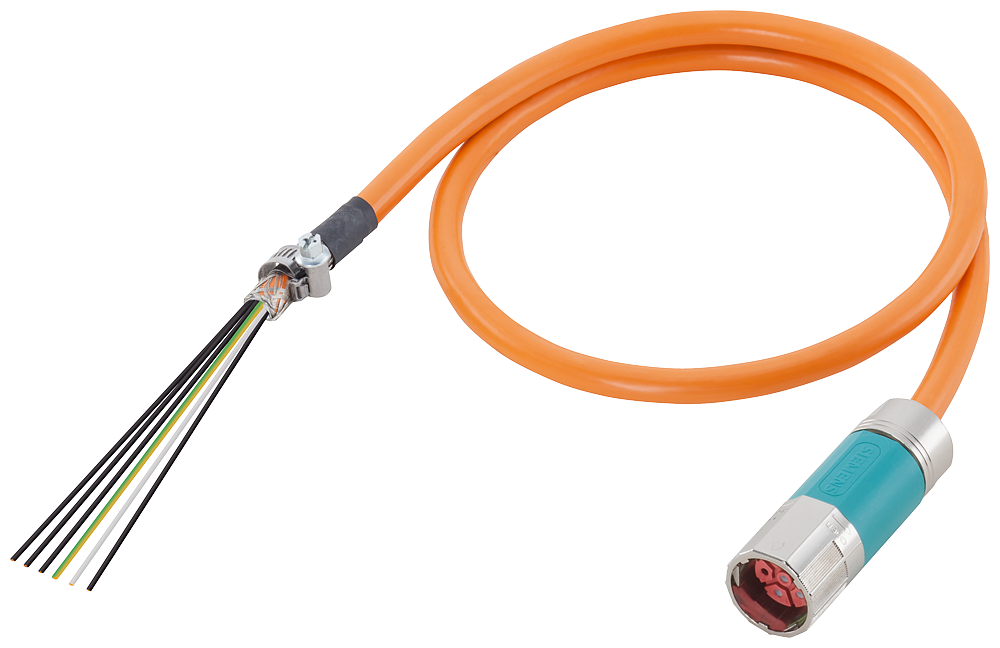

The Siemens SINAMICS MOTION-CONNECT 500 power cable 6FX5002-5CG32-1AF0 is a pre-assembled 4x2.5mm² motor power cable terminated with a Size 1.5 SPEED-CONNECT connector for a SINAMICS AC Drive, rated for UL/CSA and DESINA compliance with an orange PVC jacket, RAL 2003. It has a minimum bend radius of 30 degrees per meter, a maximum cable diameter of 10 mm, and weighs 1.42 kg.

Technical Specifications

Selection Notes

This cable uses the Size 1.5 SPEED-CONNECT termination with a 4 x 2.5 mm² conductor set, a step up in cross-section from the Size 1.5 range's lightest-gauge variant, for SINAMICS AC Drive axes that need more current headroom without changing connector size. Confirm the drive-side connector accepts Size 1.5 before ordering, since Size 1 and Size 1.5 SPEED-CONNECT parts are not interchangeable. The 30 degree per meter minimum bend radius applies when the cable runs through a cable carrier on a moving axis.

Applications

Power feed cable between a SINAMICS AC Drive and a SIMOTICS motor in installations using the SPEED-CONNECT quick-connect system, including moving-axis applications routed through a cable carrier.
