Siemens 6FX5002-5CG12-1AF0 MOTION-CONNECT 500 SPEED-CONNECT Power Cable 4x2.5mm² Servo Cable

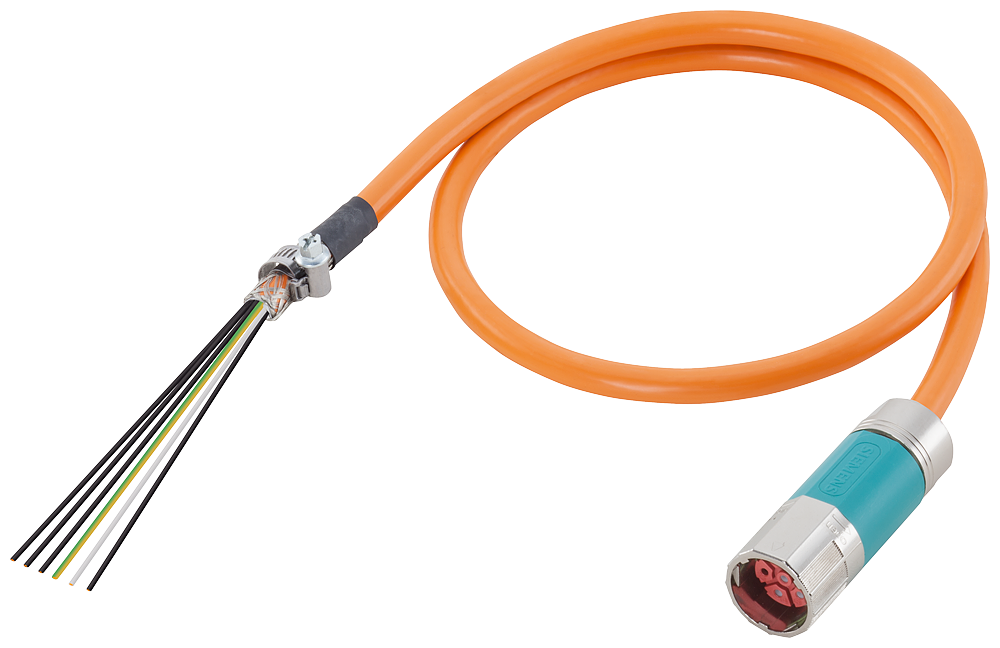

The Siemens SINAMICS MOTION-CONNECT 500 power cable 6FX5002-5CG12-1AF0 is a pre-assembled 4x2.5mm² motor power cable terminated with a Size 1 SPEED-CONNECT connector for a SINAMICS Power Module, rated for UL/CSA and DESINA compliance with an orange PVC jacket, RAL 2003. It has a minimum bend radius of 30 degrees per meter, a maximum cable diameter of 10 mm, and weighs 1.25 kg.

Technical Specifications

Selection Notes

The Size 1 SPEED-CONNECT termination and MOTION-CONNECT 500 rating tie this cable to SINAMICS Power Module installations using that connector family and duty class - confirm the module-side connector size before ordering, since SPEED-CONNECT cables come in multiple sizes that are not interchangeable. The 30 degree per meter minimum bend radius is a cable-carrier, drag-chain rating, relevant when the cable moves with an axis rather than sitting fixed in a cabinet. Its 4 x 2.5 mm² conductor set and 10 mm maximum cable diameter give more current-carrying cross-section than the lighter-gauge cables in the same SPEED-CONNECT family - size the conductor to the Power Module's rated output current rather than defaulting to this cross-section.

Applications

Power feed cable between a SINAMICS Power Module and a SIMOTICS motor in installations using the SPEED-CONNECT quick-connect system, including moving-axis applications routed through a cable carrier.
