- Siemens 6FX5002-2DC10-1AF0 DRIVE-CLiQ Signal Cable MOTION-CONNECT 500 IP20/IP67 Servo Cable Siemens 6FX5002-2DC10-1AF0 DRIVE-CLiQ Signal Cable MOTION-CONNECT 500 IP20/IP67 Servo Cable
Siemens 6FX5002-2DC10-1AF0 DRIVE-CLiQ Signal Cable MOTION-CONNECT 500 IP20/IP67 Servo Cable
Get Quote
- Description

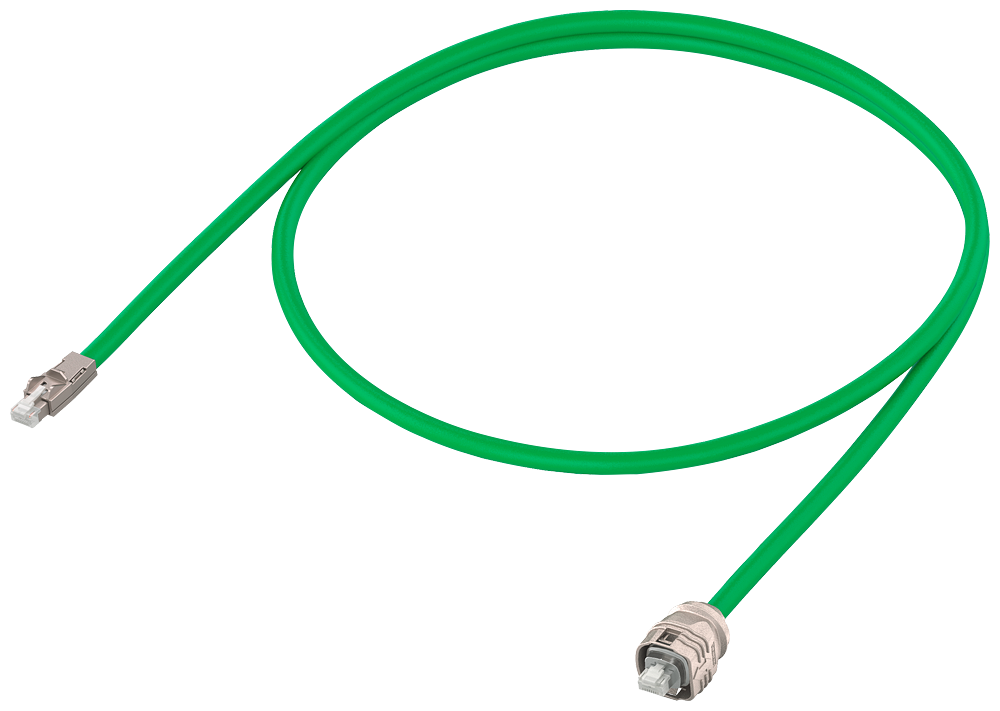

The Siemens 6FX5002-2DC10-1AF0 is a pre-assembled DRIVE-CLiQ signal cable for SINAMICS drive systems, rated to the MOTION-CONNECT 500 mechanical class with IP20/IP67 plug connectors and a 24 V DRIVE-CLiQ interface. Its green PVC DESINA jacket, RAL 6018, is UL Style 2502 rated with a 30 degree per meter minimum bend radius, and it weighs 0.442 kg.
Technical Specifications
| Order No. (MLFB) | 6FX5002-2DC10-1AF0 |
| EAN | 4042948662656 |
| Brand | Siemens |
| Series | SINAMICS / SIMOTICS, DRIVE-CLiQ |
| Product Designation | DRIVE-CLiQ Signal Cable, Pre-Assembled |
| Interface | DRIVE-CLiQ, 24 V |
| Connector Protection | IP20 / IP67 |
| Cable Standard | MOTION-CONNECT 500 |
| Minimum Bend Radius | 30 degrees per meter |
| Jacket | PVC DESINA, green, RAL 6018 |
| Cable Rating | UL Style 2502 |
| Country of Origin | Slovakia |
| Net Weight | 0.442 kg |
Selection Notes
The MOTION-CONNECT 500 rating and 30 degree per meter bend radius qualify this DRIVE-CLiQ cable for cable-carrier, drag-chain installation on a moving axis, not just fixed cabinet wiring. Confirm which end needs the IP67-rated plug, typically the motor or encoder end exposed to the machine environment, versus the IP20 drive-cabinet end before routing. The green DESINA jacket color, RAL 6018, identifies it as a DRIVE-CLiQ signal path, distinct from the orange power-cable jacket used on SINAMICS motor power cables in the same MOTION-CONNECT 500 family.
Applications
DRIVE-CLiQ signal connection between SINAMICS drive or control components and motor-mounted sensors or encoders, including moving-axis installations routed through a cable carrier.
