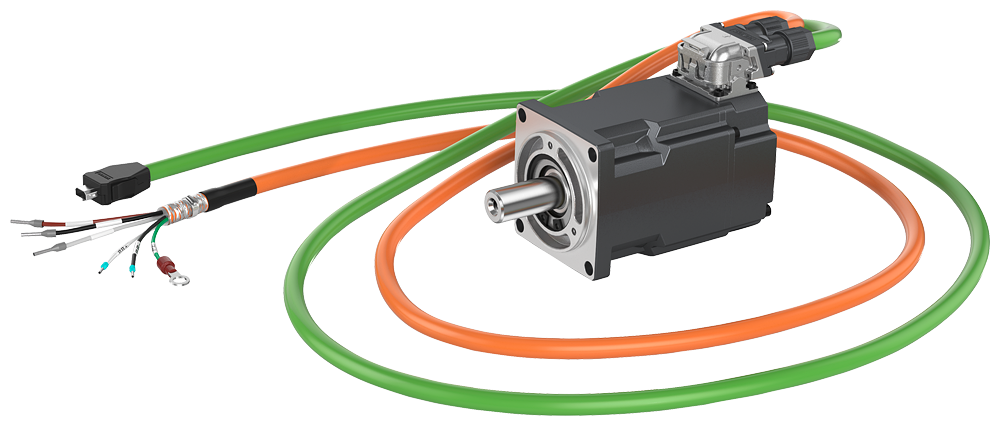

Siemens 6FX3502-7CN01-1AF0 SINAMICS S200 MOTION-CONNECT 350 5m Dual Servo Cable

The Siemens 6FX3502-7CN01-1AF0 is a pre-assembled dual cable for SINAMICS S200 servo drives, connecting to S-1FL2 SH20/30/40 motors without a brake. It combines a 4x0.75/3x2x0.25 conductor configuration in one jacket, rated for a 5 m length and 1 million bending cycles at the non-drive-end outlet. This dual-core design removes the need for separate power and encoder cable runs on the motor side.

Technical Specifications

Selection Notes

Choose this cable when the S-1FL2 SH20/30/40 motor has no integrated brake and a non-drive-end outlet orientation fits the cabinet layout; a brake-equipped motor or a drive-end outlet requires a different MOTION-CONNECT 350 variant. The 5 m length and 1 million bending-cycle rating suit fixed or occasionally-flexed installations rather than continuous drag-chain duty, where a higher flex-rated cable would be needed instead.

Applications

Used as the motor-side power and encoder connection between a SINAMICS S200 drive and an S-1FL2 SH20/30/40 servo motor in machine tool, packaging, and material-handling axes where a 5 m run and non-drive-end routing match the installation.
