Siemens 6FX2003-0SL13 SIMOTICS S-1FL6 HI Signal Connector 8-Pole Straight Servo Drive Accessory

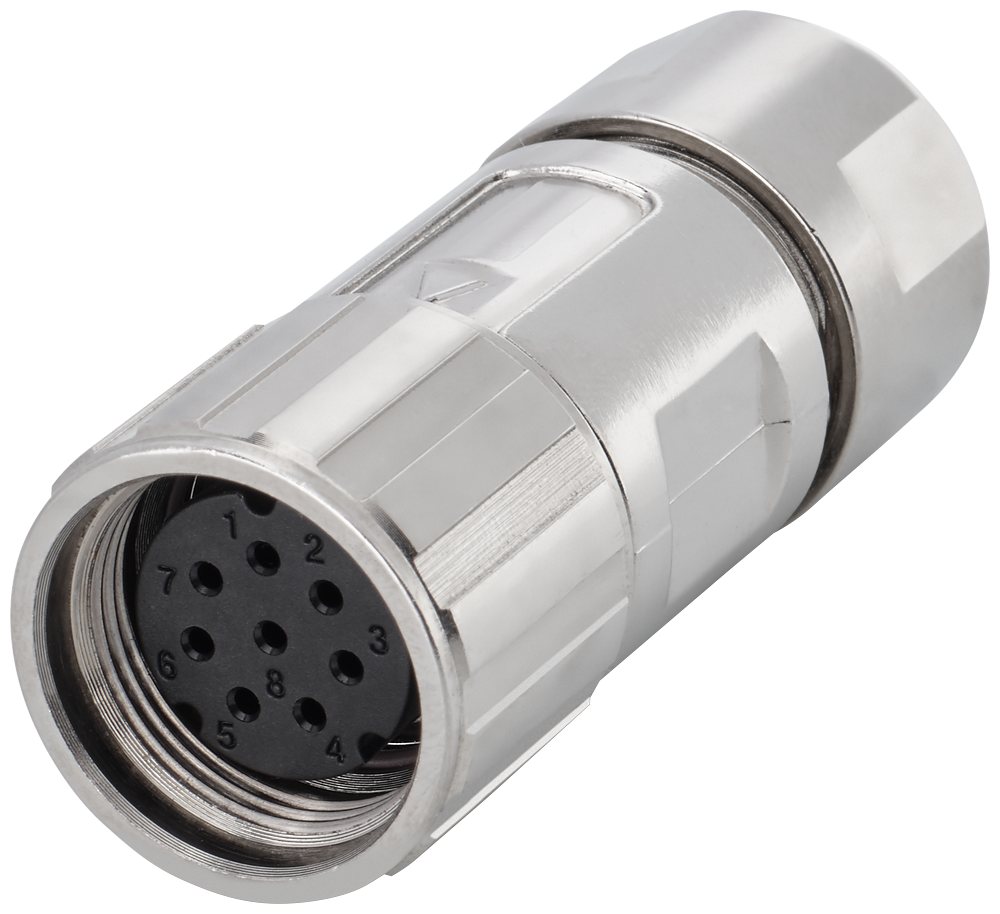

The Siemens 6FX2003-0SL13 is a straight signal connector for SIMOTICS S-1FL6 HI servo motors fitted with a rotary pulse encoder, an 8-pole insulator with a union nut and socket contacts sized for 0.2-0.25 mm² wire, built for cable diameters of 6-8 mm. It ships in packs of 5 units, weighs 2.75 kg per pack, and is manufactured in China.

Technical Specifications

Selection Notes

This connector mates the encoder-side signal cable on S-1FL6 HI motors equipped with a rotary pulse encoder, distinct from motors using an absolute encoder, so confirm the encoder type on the motor nameplate before ordering. The 6-8 mm cable diameter window and 0.2-0.25 mm² socket contacts are sized for signal-conductor gauges, narrower than the power connector's 1-2.5 mm² contacts on the same motor family. Supplied in packs of 5, order in multiples of 5 for spares or multi-axis builds.

Applications

Field-wiring signal connector for SIMOTICS S-1FL6 HI servo motors with rotary pulse encoder feedback, terminating the encoder-side signal connection on a straight cable run.
