Siemens 6ES7924-0CC21-0AA0 SIMATIC TOP Connect TPA S7-300 Screw Terminal Analog Module

% $-65.50

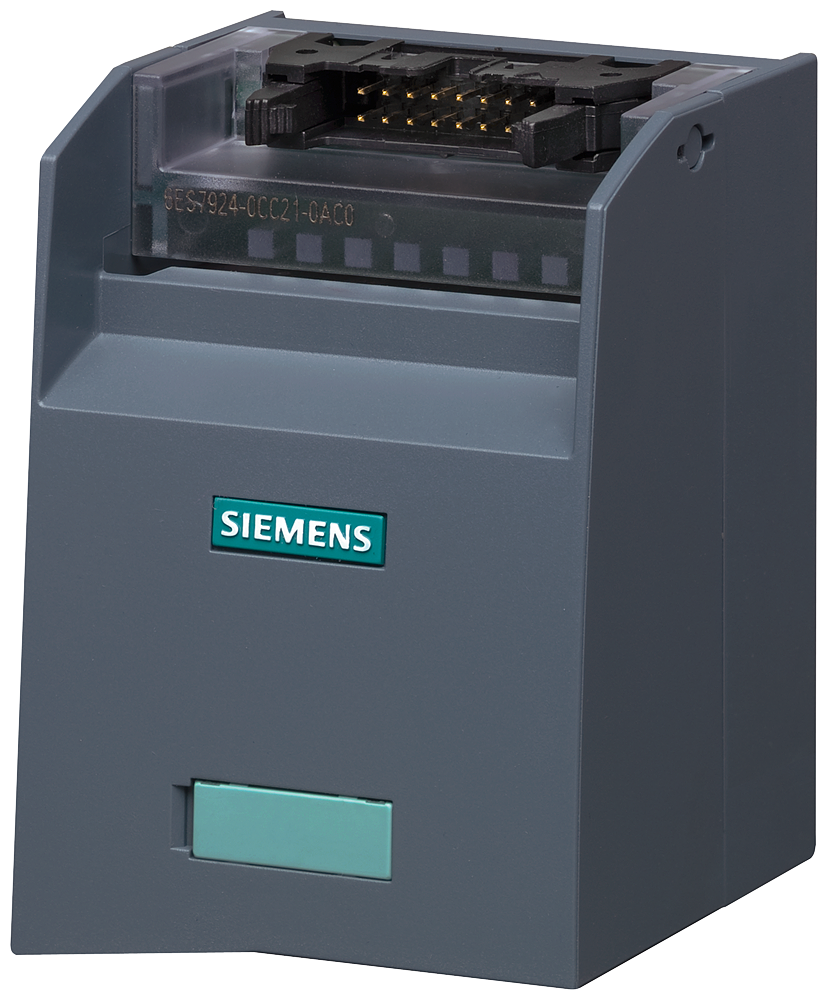

Siemens 6ES7924-0CC21-0AA0 TPA Connection Module - SIMATIC S7-300 Screw Terminal Analog
Siemens 6ES7924-0CC21-0AA0 TPA Connection Module - SIMATIC S7-300 Screw Terminal Analog

Siemens 6ES7924-0CC21-0AA0 SIMATIC TOP Connect TPA S7-300 Screw Terminal Analog Module

Brand: Siemens
Reference No: 6ES7924-0CC21-0AA0
Catalog No: 6ES7924-0CC21-0AA0
Series: SIMATIC TOP connect
Tariff Code (HS): 85366990
Rated Current: 1 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$65.50

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7924-0CC21-0AA0 is a SIMATIC TOP connect TPA connection module with a 3-tier, 30-terminal screw-terminal block for analog modules on a SIMATIC S7-300, supplied as a spare part with no signalling LED. It links analog field wiring to the S7-300 front connector module through a 16-pole IDC cable, mounted on a 35 mm DIN rail.

Technical Specifications

SKU 6ES7924-0CC21-0AA0
Brand Siemens
Series SIMATIC TOP connect
EAN 4025515153689
Target System SIMATIC S7-300
Product Designation Connection module TPA
Part Category Spare part
Suitability for Use Analog I/O modules
Terminal Type Screw-type terminal
Number of Terminals 30 (3-tier terminal block for analog I/O)
Signalling LED None
Terminal Position Top
Operating Voltage, DC (rated) 24 V
Operating Voltage (rated) 50 V
Operating Voltage, DC (maximum) 50 V
Ampacity per Pin (maximum) 1 A
Continuous Current per Signal Cable, DC (maximum) 1 A
Number of Poles, 1st Interface 16 (IDC connector, integrated strain relief)
Maximum Wire Length to Front Connector Module 30 m
Connectable Conductor Cross-Section 0.5 ... 2.5 mm²
Screwdriver Blade Width 3.5 mm
Tightening Torque 0.4 ... 0.5 N·m
Overvoltage Category 2
Degree of Pollution 2
Flammability Class (UL 94) V1
Ambient Temperature, Operation 0 ... 60 °C
Ambient Temperature, Storage -40 ... +70 °C
Dimensions (W x H x D) 57 x 76 x 60 mm
Mounting Type DIN rail 35 mm / DIN rail 15 mm
Net Weight 0.18 kg
Enclosure Color Grey
Country of Origin Romania
HS Code 85366990

Certifications & Standards

  • cULus
  • EPD

Selection Notes

Siemens lists this module as a spare part for existing SIMATIC S7-300 analog I/O installations rather than a new-design item, so specify it primarily to replace or expand an already-installed TPA connection. Screw terminals torqued to 0.4 ... 0.5 N·m accept 0.5 ... 2.5 mm² conductors, a wider minimum cross-section than the push-in S7-1500 TPA’s 0.2 mm² floor. Without an LED, verify analog channel wiring at the controller or engineering tool rather than at the terminal block.

Technical Details

Short Description
Siemens TPA analog connection module for SIMATIC S7-300, 30-terminal screw block, spare part, DIN rail.
Rated Current (Ampere)
1 A
Rated Voltage (VAC)
24 V
Mounting Type
DIN rail 35 mm / 15 mm
Catalog No
6ES7924-0CC21-0AA0
Standards
cULus approval, Environmental Product Declaration
Delivery Date (Days)
10-15 days
Model Number
6ES7924-0CC21-0AA0
Tariff Code
85366990
