Siemens 6ES7923-5BF00-0CB0 SIMATIC S7-1500 Connecting Cable 50-Pin Unshielded 5.0m PLC Connection Module

% $-84.95
Siemens 6ES7923-5BF00-0CB0 SIMATIC S7-1500 unshielded 50-pin connecting cable, 5.0m
Siemens 6ES7923-5BF00-0CB0 SIMATIC S7-1500 unshielded 50-pin connecting cable, 5.0m

Siemens 6ES7923-5BF00-0CB0 SIMATIC S7-1500 Connecting Cable 50-Pin Unshielded 5.0m PLC Connection Module

Brand: Siemens
Reference No: 6ES7923-5BF00-0CB0
Catalog No: 6ES7923-5BF00-0CB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$84.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

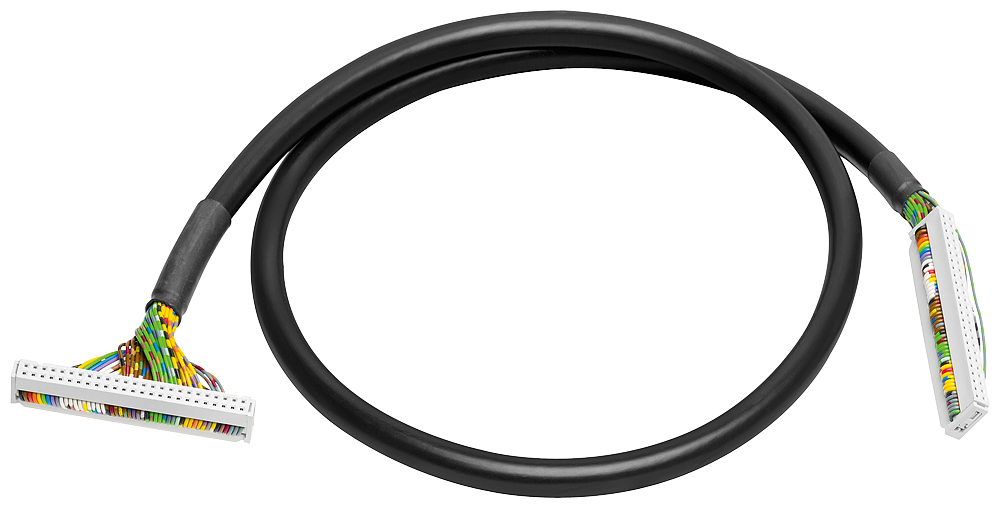

The Siemens 6ES7923-5BF00-0CB0 is a pre-assembled, unshielded 50-pin round cable for the SIMATIC S7-1500 TOP Connect system, linking a front connector module to a connection module over 5.0 m. It carries 32 digital I/O channels through 0.14 mm² conductors terminated in IDC connectors, rated for 24 V DC operation up to 60 V DC maximum.

Technical Specifications

SKU 6ES7923-5BF00-0CB0
Brand Siemens
Series SIMATIC S7-1500
EAN 4025515153146
Target System SIMATIC S7-1500
Suitability for Use Digital I/O modules
Product Designation Pre-assembled round cable
Cable Design Round cable
Number of Channels 32
Cable Length 5.0 m
Conductor Cross Section 0.14 mm²
Number of Poles 50
Connector Type IDC connector
Shielding Unshielded
Rated Operating Voltage (DC) 24 V
Maximum Operating Voltage (DC) 60 V
Outer Cable Diameter 10.3 mm
Cable Sheath Material PVC
Cable Sheath Color Black
Net Weight 0.35 kg
Ambient Temperature, Operation 0 ... 60 °C
Ambient Temperature, Storage -30 ... +70 °C
Country of Origin Romania (RO)
HS Code 85444290
Global Warming Potential, Total (EPD) 9.959 kg CO2 eq
Global Warming Potential, Manufacturing 9.685 kg CO2 eq
Global Warming Potential, End of Life 0.024 kg CO2 eq

Selection Notes

Choose the unshielded variant when the front connector module and connection module carry only digital I/O channels; the SIMATIC TOP Connect system reserves the shielded design for connection modules that also carry analog signals, where the braided shield limits coupled noise on the analog path. Match the 5.0 m length to the physical distance between the front connector module and the connection module, since the 50-pole IDC terminations are fixed and not field-trimmable.

Technical Details

Short Description
Siemens 6ES7923-5BF00-0CB0: unshielded 50-pin round cable, 5.0 m, 32 channels, IDC, SIMATIC S7-1500 TOP Connect.
Rated Voltage (VAC)
24 V
Catalog No
6ES7923-5BF00-0CB0
Delivery Date (Days)
10-15 days
Model Number
6ES7923-5BF00-0CB0
Tariff Code
85444290
