Siemens 6ES7922-5CB00-0HB0 SIMATIC S7-1500 Front Connector 40-Pole 20-Core 10m Halogen-Free

% $-229.48
Siemens 6ES7922-5CB00-0HB0 Front Connector PLC Connection Module - 20-Core 10m Halogen-Free
Siemens 6ES7922-5CB00-0HB0 Front Connector PLC Connection Module - 20-Core 10m Halogen-Free

Siemens 6ES7922-5CB00-0HB0 SIMATIC S7-1500 Front Connector 40-Pole 20-Core 10m Halogen-Free

Brand: Siemens
Reference No: 6ES7922-5CB00-0HB0
Catalog No: 6ES7922-5CB00-0HB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Current: 1.5 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$229.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

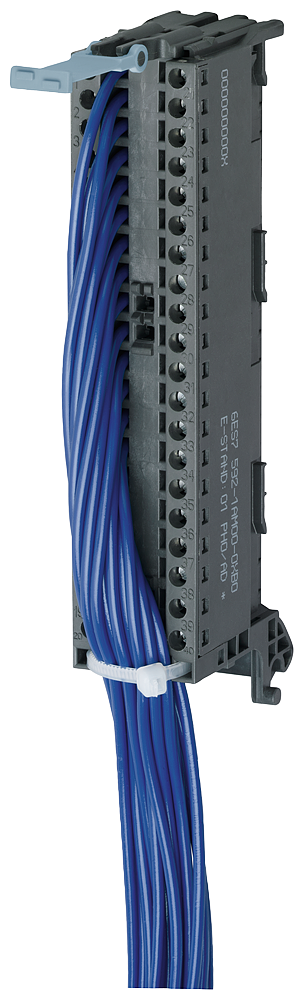

The Siemens 6ES7922-5CB00-0HB0 is a pre-assembled 40-pole front connector for the SIMATIC S7-1500 with 20 numbered single cores of 0.5 mm2, 10 m long, terminated in halogen-free H05Z-K insulation. It plugs onto a digital I/O module in place of the standard front connector, replacing point-to-point field wiring with a single labeled cable run.

Technical Specifications

SKU 6ES7922-5CB00-0HB0
Brand Siemens
Series SIMATIC S7-1500
Product Designation Front Connector with Single Cores
EAN 4025515154167
Target System SIMATIC S7-1500
Suitability Digital I/O modules
Operating Voltage (DC), Rated 24 V
Operating Voltage (DC), Maximum 30 V
Continuous Current (all cores loaded, DC, max) 1.5 A
Connector Type 6ES7592-1AM00-0XB0
Terminal Type Screw-type terminal
Wire Length 10 m
Number of Channels 20
Number of Poles 40 (front connector)
Core Marking Numbered 1-20, white adapter contact = core number
Cable Design H05Z-K
Cable Sheath Material Polyolefin, halogen-free
Cable Sheath Color Blue (RAL 5010)
Conductor Cross Section 0.5 mm2
Cable Outer Diameter 2.2 mm
Ambient Temperature, Operation 0 ... 60 degC
Ambient Temperature, Storage -15 ... +60 degC
Net Weight 2.14 kg
Country of Origin Romania

Selection Notes

Only 20 of the 40 front-connector poles carry a wire on the 6ES7922-5CB00-0HB0, so it fits digital I/O modules where half the channels stay unused or are reserved as spares; the numbered cores (1-20) map straight to the module's channel layout without a wiring diagram on hand. Pick the 40-core sibling instead when every channel on the module is populated. The halogen-free H05Z-K sheath matters where the cabinet or building falls under low-smoke, halogen-free cable rules.

Technical Details

Short Description
40-pole front connector for SIMATIC S7-1500, 20x0.5mm2 halogen-free cores, 10m, screw version.
Rated Current (Ampere)
1.5 A
Rated Voltage (VAC)
24 V
Mounting Type
Plug-on (replaces module's front connector)
Catalog No
6ES7922-5CB00-0HB0
Delivery Date (Days)
10-15 days
Model Number
6ES7922-5CB00-0HB0
Tariff Code
85444290
