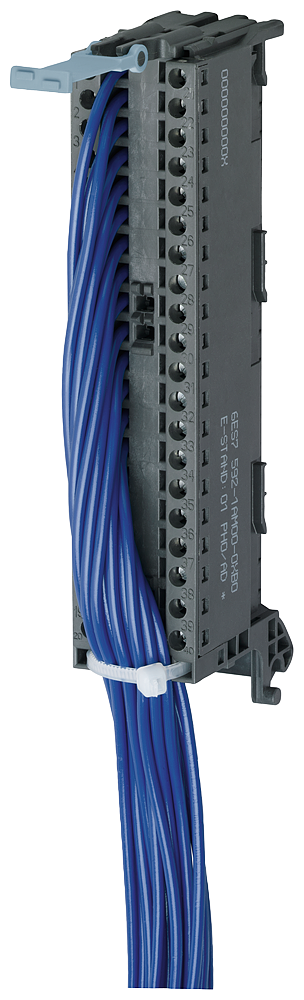

Siemens 6ES7922-5BC50-0HB0 SIMATIC S7-1500 Front Connector 20-Core Halogen-Free 2.5m PLC Connection Module

% $-143.47
Siemens 6ES7922-5BC50-0HB0 S7-1500 Front Connector 20-Core Halogen-Free - 2.5 m
Siemens 6ES7922-5BC50-0HB0 S7-1500 Front Connector 20-Core Halogen-Free - 2.5 m

Siemens 6ES7922-5BC50-0HB0 SIMATIC S7-1500 Front Connector 20-Core Halogen-Free 2.5m PLC Connection Module

Brand: Siemens
Reference No: 6ES7922-5BC50-0HB0
Catalog No: 6ES7922-5BC50-0HB0
Series: SIMATIC S7-1500
Tariff Code (HS): 85444290
Rated Current: 1.5 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$143.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7922-5BC50-0HB0 is a pre-wired 40-pole front connector for SIMATIC S7-1500 digital I/O modules, fitted with 20 individually numbered halogen-free H05Z-K single cores at a 2.5 m length. It plugs onto the module in place of the standard front connector, screw-terminal version, rated 24 V DC (30 V DC maximum) with 1.5 A maximum continuous current per core.

Technical Specifications

SKU 6ES7922-5BC50-0HB0
Brand Siemens
Series SIMATIC S7-1500
EAN 4025515154112
Product Designation Front Connector with Single Cores
Mating Connector Position 6ES7592-1AM00-0XB0
Number of Poles 40
Number of Wired Cores 20
Wire Length 2.5 m
Wire Type H05Z-K (halogen-free)
Conductor Cross Section 0.5 mm²
Cable Outer Diameter 2.2 mm
Cable Sheath Material Polyolefin basis, halogen-free
Cable Sheath Color Blue (RAL 5010)
Terminal Type Screw-type terminal
Rated Operating Voltage 24 V DC
Maximum Operating Voltage 30 V DC
Maximum Continuous Current 1.5 A
Operating Temperature 0 ... 60 °C
Storage Temperature -15 ... +60 °C
Net Weight 0.81 kg
Country of Origin RO

Selection Notes

The halogen-free H05Z-K cores suit installations where cabling must meet low-smoke, zero-halogen requirements, such as marine or public-building panels, in place of standard PVC-sheathed H05V-K wire. With 20 of 40 poles wired, it matches half-channel-density digital I/O modules rather than the fully wired 40-core version. Its -15 ... +60 °C storage range is narrower than the PVC version's -30 ... +70 °C, so store it accordingly before installation.

Technical Details

Short Description
Siemens 6ES7922-5BC50-0HB0 front connector, SIMATIC S7-1500, 20-core halogen-free H05Z-K, 2.5 m, screw terminal.
Rated Current (Ampere)
1.5 A
Rated Voltage (VAC)
24 V
Mounting Type
Plug-in (front connector)
Catalog No
6ES7922-5BC50-0HB0
Delivery Date (Days)
10-15 days
Model Number
6ES7922-5BC50-0HB0
Tariff Code
85444290
