Siemens 6ES7921-3AG00-0AA0 SIMATIC TOP Connect Front Connector 20-Pole Screw Analog PLC Connection Module

% $-64.45

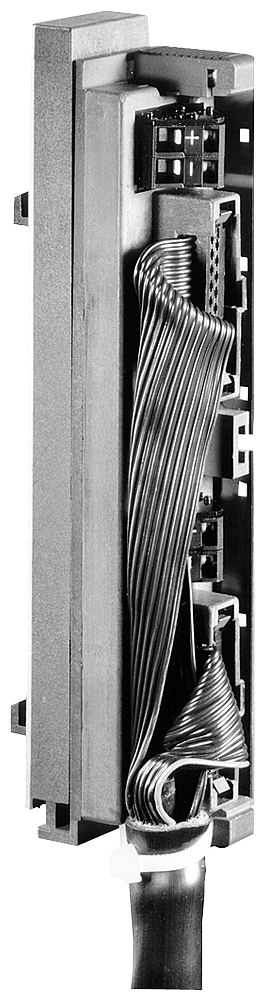

Siemens 6ES7921-3AG00-0AA0 SIMATIC TOP connect front connector module - analog screw
Siemens 6ES7921-3AG00-0AA0 SIMATIC TOP connect front connector module - analog screw

Siemens 6ES7921-3AG00-0AA0 SIMATIC TOP Connect Front Connector 20-Pole Screw Analog PLC Connection Module

Brand: Siemens
Reference No: 6ES7921-3AG00-0AA0
Catalog No: 6ES7921-3AG00-0AA0
Series: SIMATIC TOP connect
Tariff Code (HS): 85366990
Rated Current: 1 A
Rated Voltage: 24 V
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$64.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7921-3AG00-0AA0 is a SIMATIC TOP connect front connector module for S7-300 analog I/O modules. It carries the signal wiring through a single 16-pole IDC cable connection and feeds power through screw-type terminals rated 24 V DC, 1 A, torqued to 0.4-0.7 N·m, with one L+ and one M terminal. It plugs directly into the analog module in place of the factory front connector.

Technical Specifications

SKU (Order No.) 6ES7921-3AG00-0AA0
Brand Siemens
Series SIMATIC TOP connect
EAN 4025515065791
Target System SIMATIC S7-300
Suitability For Use Analog I/O modules
Product Designation Front connector module
Rated Operating Voltage (DC) 24 V
Maximum Operating Voltage (DC) 60 V
Rated Current 1 A
Max. Continuous Current per Contact (DC) 1 A
Max. Total Current 4 A
Number of Poles (Front Connector) 20
Connecting Cable Connection Type Plug-in connection
Poles at 1st Interface 16 (IDC connector)
Number of Plug Contacts 2
Max. Wire Length 30 m
Number of Terminals 2 (1x L+, 1x M)
Power Supply Connection Type Screw-type terminal
Terminal Position At the top
Conductor Cross-Section, Flexible with Ferrule 0.25-1.5 mm²
Conductor Cross-Section, Stranded 0.25-1.5 mm²
Stripped Length 6 mm
Screwdriver Blade Width 3.5 mm
Tightening Torque, Screw Terminals 0.4-0.7 N·m
Overvoltage Category 2
Pollution Degree 2
Operating Temperature 0...60 °C
Storage Temperature -40...+70 °C
Mounting Type Direct mounting
Enclosure Color Black
Net Weight 0.065 kg
Country of Origin Poland

Certifications & Standards

  • cULus

Selection Notes

With only one L+/M terminal pair, this connector matches analog modules that draw a single supply feed rather than the multi-terminal digital variants in the same TOP connect family. Screw terminals give a documented 0.4-0.7 N·m tightening torque on that feed, useful where the build sheet requires a recorded torque value; pick the spring-terminal version instead when analog cards are swapped often and tool-free wiring speed matters more.

Technical Details

Short Description
SIMATIC TOP connect 20-pole front connector, screw terminals, for S7-300 analog I/O modules, 24V DC.
Rated Current (Ampere)
1 A
Rated Voltage (VAC)
24 V
Mounting Type
Direct mounting
Catalog No
6ES7921-3AG00-0AA0
Standards
/ cULus approval
Delivery Date (Days)
10-15 days
Model Number
6ES7921-3AG00-0AA0
Tariff Code
85366990
