Siemens 6ES7677-2DB42-0GL0 ET 200SP Open Controller CPU1515SP PC2 HMI 512PT Programmable Logic Controller

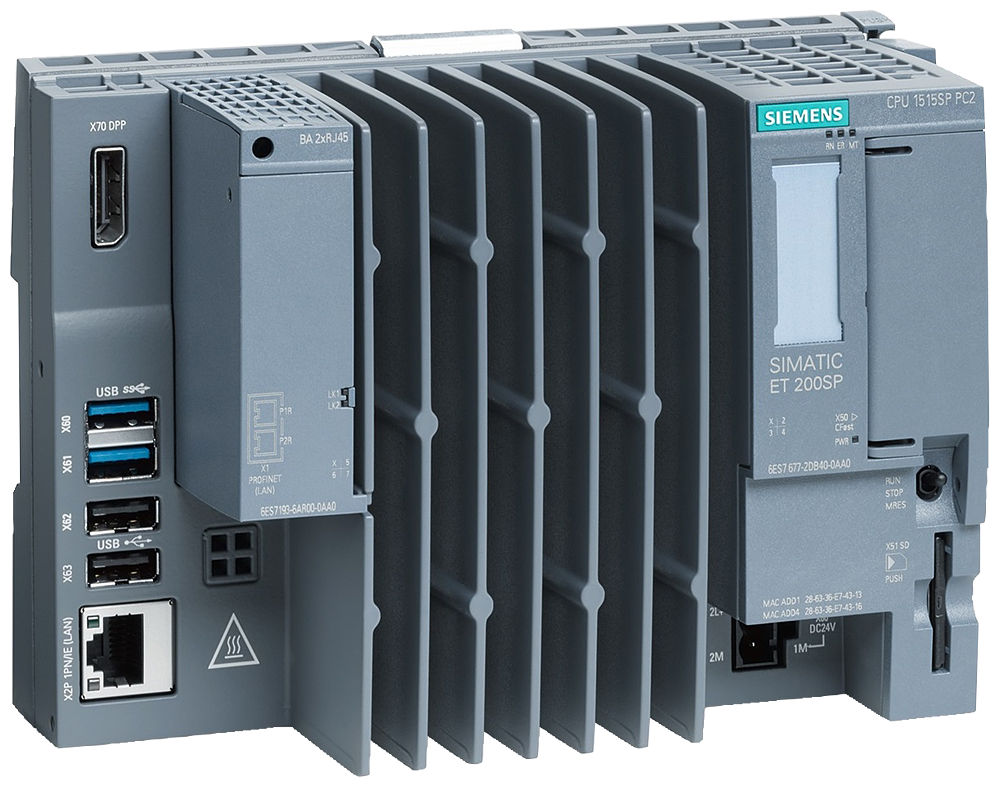

The Siemens 6ES7677-2DB42-0GL0 is a SIMATIC ET 200SP Open Controller, CPU1515SP PC2 + HMI 512PT, bundling the S7-1500 Software Controller CPU 1505SP V2x with WinCC Runtime Advanced V17 under a 512 PowerTags license on the same Intel Atom E3940 hardware. The larger tag budget covers a multi-screen operator interface while the controller keeps its 8 GB RAM, 128 GB CFast storage, and DisplayPort video output.

Technical Specifications

Certifications & Standards

• CE
• CSA
• cULus
• FM
• RCM

Selection Notes

Pick the 6ES7677-2DB42-0GL0 when the visualization needs more than the 128-tag -0GK0 license covers but does not need the 2048-tag -0GM0 ceiling; the controller memory (1 Mbyte program / 5 Mbyte data) and CPU-blocks budget (6 000) are identical across all three HMI variants, so PowerTags count is the only selection criterion between them.

Applications

Suits machine cells with several linked HMI screens - a main panel plus one or two satellite displays - where 128 PowerTags would be too tight but a full 2048-tag license is unneeded.
