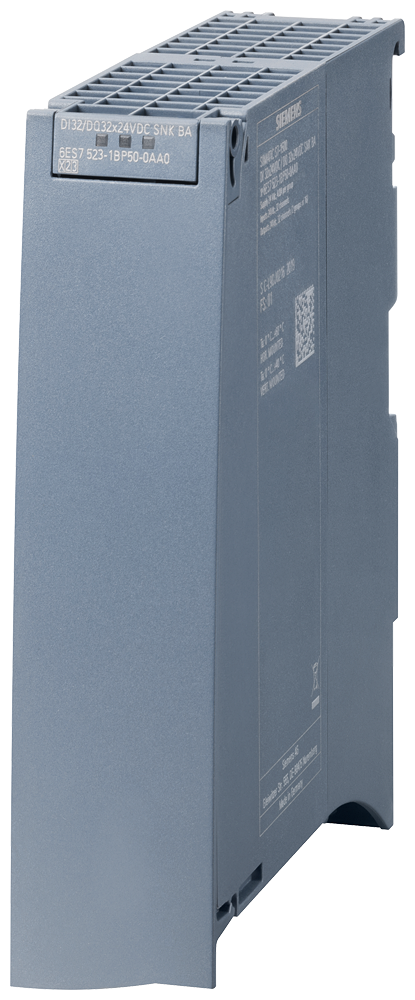

Siemens 6ES7523-1BP50-0AA0 SIMATIC S7-1500 DI 32x24VDC/DQ 32x24VDC/0.3A BA Digital I/O Module
Get Quote
- Description
The Siemens SIMATIC S7-1500 DI 32x24VDC/DQ 32x24VDC/0.3A BA (6ES7523-1BP50-0AA0) combines 32 digital inputs and 32 digital outputs rated 24V DC in one 35 mm wide module. Inputs follow IEC 61131 type 3 sourcing/sinking characteristics with a 3-4 ms delay, while outputs switch 0.3A per channel, 2A per group of 16, and require external fusing since they have no built-in short-circuit protection.
Technical Specifications
| SKU | 6ES7523-1BP50-0AA0 |
| Brand | Siemens |
| Series | SIMATIC S7-1500 |
| Product Type Designation | DI 32x24VDC/DQ 32x24VDC/0.3A BA |
| Digital Inputs | 32, IEC 61131 type 3, sourcing/sinking |
| Input Voltage | 24 V DC (signal 1: 11-30 V; signal 0: -5 to 5 V) |
| Input Delay | 3-4 ms |
| Digital Outputs | 32, transistor type, current-sinking |
| Output Current | 0.3 A per channel, 2 A per group, 4 A per module max. |
| Output Short-Circuit Protection | No — external fusing required, max. 4 A per group |
| Supply Voltage | 24 V DC (19.2-28.8 V) |
| Isolation Test Voltage | 707 V DC (type test) |
| Ambient Temperature, horizontal mounting | -30 to 60°C |
| Ambient Temperature, vertical mounting | -30 to 40°C |
| Dimensions (W x H x D) | 35 x 147 x 129 mm |
| Weight | 250 g |
Selection Notes
Combining 32 DI with 32 DQ in one 35 mm slot saves rack space versus fitting a separate input and output module. The sourcing/sinking input stage accepts either PNP or NPN sensors without rewiring the group, which matters when field wiring standards vary between machine sections. Unlike output-only S7-1500 modules with internal short-circuit protection, this module's outputs are unprotected and need an external 4 A type B or C breaker per group — plan panel protection accordingly before commissioning.
Applications
Fits compact machine cells where sensor inputs and actuator outputs both need to sit in a single I/O slot — proximity sensors and limit switches on the input side, solenoid valves and pilot lamps on the output side. Cables and TOP connect connection modules are ordered separately.
