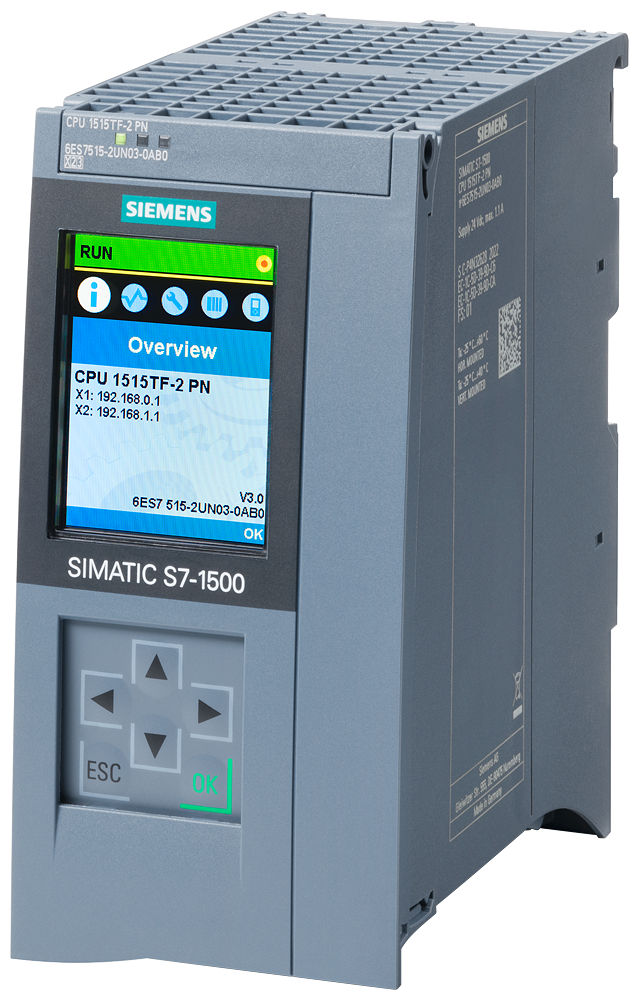

Siemens 6ES7515-2UN03-0AB0 SIMATIC S7-1500T CPU 1515TF-2 PN 1.5MB 4.5MB 2x PROFINET Motion Controller

The Siemens 6ES7515-2UN03-0AB0 is a SIMATIC S7-1500T CPU 1515TF-2 PN with 1.5 MB program memory and 4.5 MB data memory, combining fail-safe and motion (Technology) functions in one CPU. Its first PROFINET interface has an integrated 2-port IRT switch, the second runs PROFINET RT, and typical bit-instruction processing takes 6 ns. A SIMATIC Memory Card is required to operate.

Technical Specifications

Selection Notes

The T in 1515TF-2 PN adds Technology objects for motion control (positioning, synchronous operation, cams) on top of the standard 1515F safety functions, so pick this CPU over a plain 1515F when the application needs coordinated axis motion, not just fail-safe logic. The integrated 2-port IRT switch on interface 1 supports isochronous real-time PROFINET for motion-critical I/O, while the second RT-only interface is better suited to a separate, non-time-critical network segment such as plant-level supervision.

Applications

Used as the controller for machines that combine safety-rated logic with coordinated axis motion — such as packaging equipment, printing presses, and material-handling systems — where PROFINET IRT drives synchronized servo axes on one interface while a separate PROFINET RT connection handles supervisory or HMI traffic.
