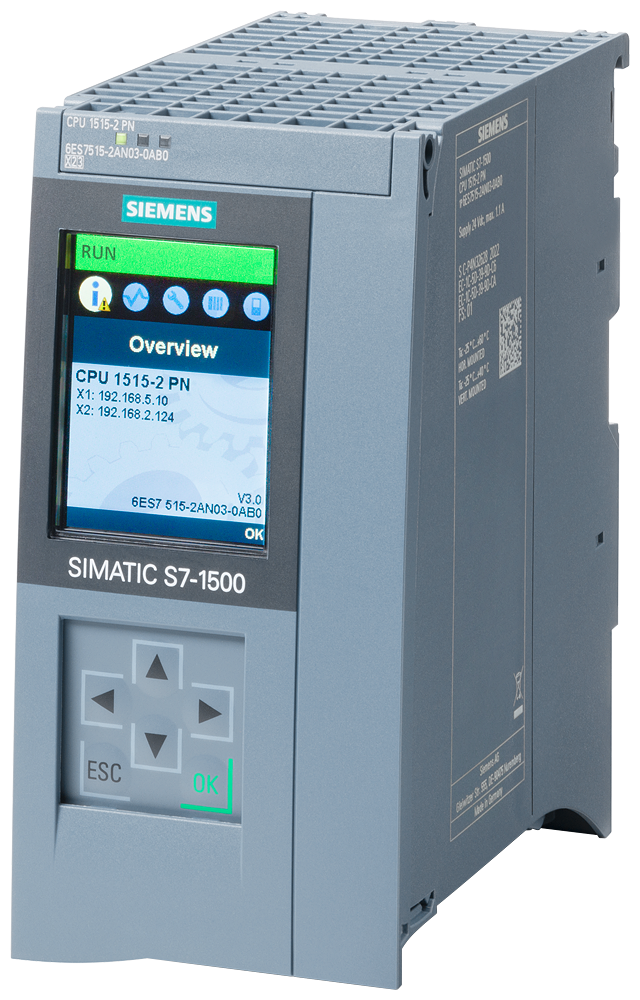

Siemens 6ES7515-2AN03-0AB0 SIMATIC S7-1500 CPU 1515-2 PN 1MB/4.5MB Programmable Logic Controller

The Siemens SIMATIC S7-1500 CPU 1515-2 PN 6ES7515-2AN03-0AB0 provides 1 MB of program memory and 4.5 MB of data memory, with bit-instruction processing at 6 ns typical. It carries two PROFINET interfaces, the first with an integrated IRT 2-port switch and the second for PROFINET RT, and it requires a SIMATIC Memory Card to operate.

Technical Specifications

Selection Notes

The 1 MB program / 4.5 MB data memory and 6 ns bit-processing time put this CPU above the entry S7-1500 CPUs for machines running more complex logic or larger data sets; choose a higher-memory CPU in the 1500 line only if the 472 KB retentive data area or the 4.5 MB work memory becomes the limiting factor. The dual PROFINET interfaces let one port run IRT for a fast, deterministic motion or drive network while the second handles standard RT traffic to HMIs, SCADA, or plant Ethernet, without needing a separate communication processor for that second network segment. Configuration requires TIA Portal V21 (firmware V4.1) or V18 for the earlier firmware, and a SIMATIC Memory Card must be fitted before the CPU will run.

Applications

Suited to mid-size machine and line controllers that need PROFINET IRT for coordinated axis or drive control alongside a separate PROFINET RT connection to the rest of the plant network: packaging lines, material handling, and process skids with moderate program complexity.
