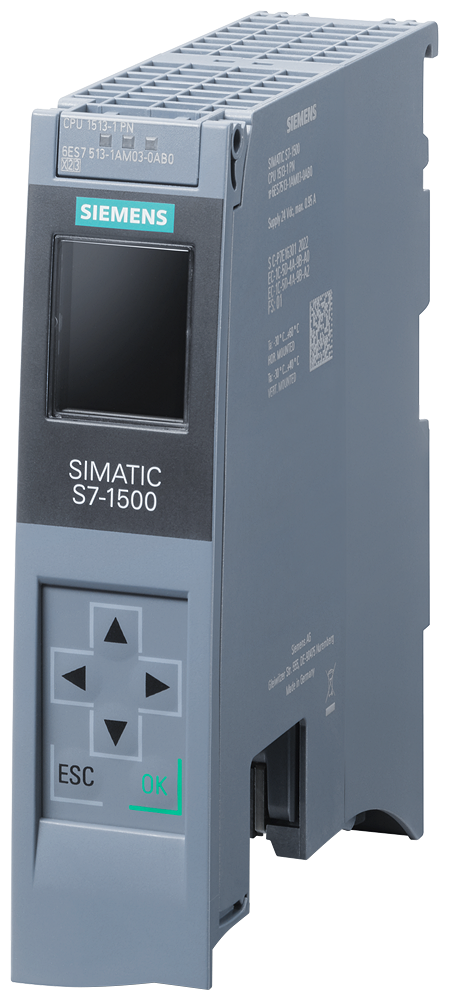

- Siemens 6ES7513-1AM03-0AB0 SIMATIC S7-1500 CPU 1513-1 PN 600KB PROFINET IRT Programmable Logic Controller Siemens 6ES7513-1AM03-0AB0 SIMATIC S7-1500 CPU 1513-1 PN 600KB PROFINET IRT Programmable Logic Controller
Siemens 6ES7513-1AM03-0AB0 SIMATIC S7-1500 CPU 1513-1 PN 600KB PROFINET IRT Programmable Logic Controller
Get Quote
- Description
The Siemens 6ES7513-1AM03-0AB0 is a SIMATIC S7-1500 CPU 1513-1 PN with 600 KB of work memory for program and 2.5 MB for data, a 6 ns typical bit-instruction time, and an integrated 2-port PROFINET IRT interface. It requires a SIMATIC Memory Card, supports up to 32 GB load memory, and controls up to 128 connected PROFINET IO devices.
Technical Specifications
| SKU | 6ES7513-1AM03-0AB0 |
| Brand | Siemens |
| Series | SIMATIC S7-1500 |
| Product Type Designation | CPU 1513-1 PN |
| Firmware Version | V4.1 |
| Work Memory, Program | 600 kbyte |
| Work Memory, Data | 2.5 Mbyte |
| Load Memory, Max. (SIMATIC Memory Card) | 32 Gbyte |
| Bit Processing Time, Typ. | 6 ns |
| Word Processing Time, Typ. | 7 ns |
| Supply Voltage | 24V DC (19.2...28.8V) |
| Current Consumption, Rated | 0.56 A |
| Power Loss, Typ. | 3.4 W |
| PROFINET Interfaces | 1 (2-port integrated switch) |
| IRT Support | Yes |
| Max. Connectable IO Devices | 128 |
| Max. IO Devices with IRT | 64 |
| Max. Rack Modules | 32 (CPU + 31 modules) |
| Max. Retentive Data Area | 216 kbyte |
Selection Notes
The 600 KB program and 2.5 MB data memory with a 6 ns bit time put the 1513-1 PN in the mid-range of the S7-1500 CPU line - enough headroom for a machine or small process cell with distributed I/O, but a CPU with larger memory is the right choice if the program approaches the 4,000-block limit or the 216 KB retentive data ceiling. The integrated 2-port PROFINET IRT switch supports isochronous mode down to a 500 microsecond cycle, relevant for motion-control axes needing tight synchronization; for standard I/O without isochronous timing, IRT capability is not a deciding factor. A SIMATIC Memory Card is mandatory - the CPU will not boot without one.
Applications
Machine and process control with PROFINET-distributed I/O, including applications needing isochronous real-time communication for coordinated motion axes, open Ethernet communication, and web-server diagnostics via TIA Portal.
